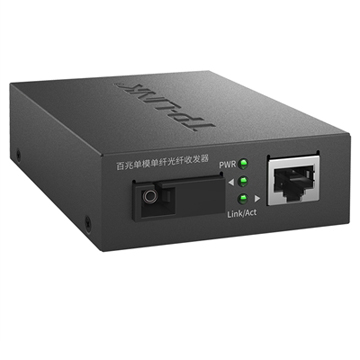

TL-FC111A-20 10/100 Mbps WDM Media Converter
Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fiber
Extends fiber distance up to 20km
NETWORK
|
Standards and Protocols
|
IEEE802.3, IEEE802.3i, IEEE802.3u
|
ENVIRONMENT
|
Operating Temperature
|
0?C to 50?C (32?F to 122?F)
|
Storage Temperature
|
-40?C to 70?C (-40?F to 158?F)
|
Operating Humidity
|
10% to 90% RH non-condensing
|
Storage Humidity
|
5% to 90% RH non-condensing
|
HARDWARE FEATURES
|
Interface
|
? 1× 100 Mbps SC Fiber Port
? 1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX)
|
Network Media
|
100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
|
Power Supply
|
External Power Adapter: 5 V/0.6 A
|
LED
|
PWR, Link/Act
|
Dimensions ( W x D x H )
|
94.5*73*27 mm
|
Wave Length
|
1550 nm TX, 1310 nm RX
|
MEDIA CONVERTER & MODULE
|
Fiber Type
|
9/125 μm single-mode fber (≤20 km)
|
OTHERS
|
Package Contents
|
? Media Converter TL-FC111A-20
? Power Adapter
? Installation Guide
|
