Brand:BOSCH
Model:
NDE-3502-F02
NDE-3502-F03
NDE-3503-F02
NDE-3503-F03
NDE-3502-F02-P
NDE-3502-F03-P
NDE-3503-F03-P
NDE-3503-F02-P

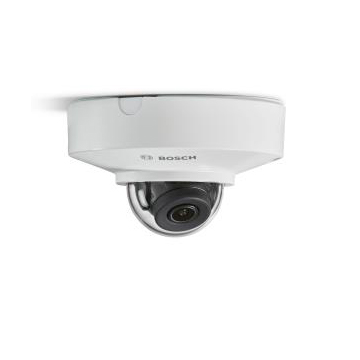

BOSCH NDE-3503-F03-P Fixed micro dome OUTDOOR (Discontinued)
NDE-3502-F02 Fixed micro dome 2MP HDR 130° IP66 IK10IP fixed dome camera with tamper and motion detection;
2MP HD 1080p resolution; 130o lens; outdoor; IP66;IK10; EVA.
F.01U.385.759
NDE-3502-F03 Fixed micro dome 2MP HDR 100° IP66 IK10 IP fixed dome camera with tamper and motion detection;
2MP HD 1080p resolution; 100o lens; outdoor; IP66;IK10; EVA.
F.01U.385.760
NDE-3503-F02 Fixed micro dome 5MP HDR 120° IP66 IK10IP fixed dome camera with tamper and motion detection;
5MP resolution; 120o lens; outdoor; IP66; IK10; EVA.
F.01U.385.761
NDE-3503-F03 Fixed micro dome 5MP HDR 100° IP66 IK10 IP fixed dome camera with tamper and motion detection;
5MP resolution; 100o lens; outdoor; IP66; IK10; EVA.
F.01U.385.762
NDE-3502-F02-P Fixed micro dome 2MP HDR 130° IP66 IK10 IP fixed dome camera with tamper and motion detection;
2MP HD 1080p resolution; 130o lens; outdoor; IP66; IK10; EVA.
F.01U.393.623
NDE-3502-F03-P Fixed micro dome 2MP HDR 100° IP66 IK10 IP fixed dome camera with tamper and motion detection;
2MP HD 1080p resolution; 100o lens; outdoor; IP66; IK10; EVA.
F.01U.393.624
NDE-3503-F02-P Fixed micro dome 5MP HDR 120° IP66 IK10 IP fixed dome camera with tamper and motion detection;
5MP resolution; 120o lens; outdoor; IP66; IK10; EVA.
F.01U.393.625
NDE-3503-F03-P Fixed micro dome 5MP HDR 100° IP66 IK10 IP fixed dome camera with tamper and motion detection;
5MP resolution; 100o lens; outdoor; IP66; IK10; EVA.
F.01U.393.626
Accessories
NPD-5001-POE Midspan, 15W, single port, AC in Power-over-Ethernet midspan injector for use with PoE
enabled cameras; 15.4 W, 1-port Weight: 200 g (0.44 lb)
F.01U.305.288
NPD-5004-POE Midspan, 4 port x 15W, AC in Power-over-Ethernet midspan injector for use with PoE
enabled cameras; 15.4 W, 4-ports Weight: 620 g (1.4 lb)
F.01U.305.289
UPA-1220-50 Power supply, 220VAC 50Hz, 12VDC 1A out Power supply for camera. 110-240 VAC, 50/60 Hz In; 12
VDC, 1 A Out; regulated. Input connector: 2-prong, European Europlug standard (4 mm / 19 mm).
F.01U.076.158
UPA-1220-60 Power supply, 120VAC 60Hz,12VDC 1A out Power supply for camera. 100-240 VAC, 50/60 Hz In; 12
VDC, 1 A Out; regulated. Input connector: 2-prong, North American standard (nonpolarized).
F.01U.076.155
Services EWE-3000IO -IW 12mths wrty ext 3000i series outdoor 12 months warranty extension
F.01U.382.247
1080p and 5MP resolutions with fully configurable H.265 multi-streaming
Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
High Dynamic Range (120 dB) for challenging bright and dark scenes
Key Specifications
Frame rate (fps) 20 – 25 fps
Impact protection (EN 50102) IK10
IP rating IP66
Minimum illumination in color (lx) 0.57 lx
Minimum illumination in monochrome (lx) 0.24 lx
Operating temperature (°C) -30 – 50 °C
Operating temperature (°F) -22 – 122 °F
Resolution 1920 x 1080
Sensor type 1/2.9 inch CMOS
Video compression H.264 (ISO/IEC 14496-10)
