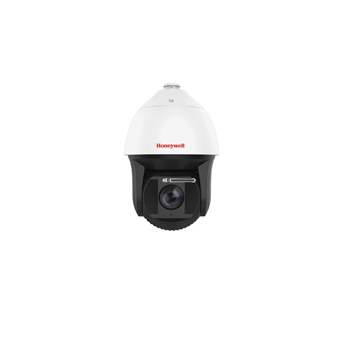

HVCP-4536IS 4MP 36x Speed Dome Network Camera
Honeywell HVCP- 4536KS 36x speed dome network camera and HVCP-4536IS 36x IR
speed dome network camera have 4MP 25/30FPS HD video images, and provide
the excellent, accurate color reproduction effect. With an IP67 rigid aluminum alloy
construction, these speed domes are ideal choices for mid-high-end surveillance monitoring.
HVCP-4536KS and HVCP-4536IS support 360° continuous rotation and equipped
with 36X auto-focus optics zoom lens, making it convenient and flexible for users
to view a specific area. 1/1.8" large sensor can provide extremely excellent low
illumination imaging ability. True Day/Night and true WDR work perfectly in high
illumination contrast environment. It is particularly useful for surveillance at car
parking lot and highways.
HVCP-4536IS is equipped with IR LEDs, which can provide up to 200m infrared
illumination for the camera in all dark environments, so that the camera can
present a clear monochrome picture at night.
Honeywell HVCP-4536KS and HVCP-4536IS integrate the latest PTZ technology
and design, making it an ideal choice for a variety of security, monitoring
applications, especially for government, subway, airport, port, defense, campus,
sports venues, parks, scenic spots, communities, industry and highways and other
fields to provide high-quality monitoring solutions.
FEATURES
1/1.8" Progressive Scan CMOS
Support 2560 x 1440@25fps
Support H.265/ H.264/ MJPEG
True Day/ Night switch
120dB WDR
HLC, BLC, EIS, defog
Auto-Tracking base on deeplearning algorithm
36x Optical Zoom, 16x Digital Zoom
200m IR (HVCP-4536IS Only)
Pan: 360° endless, Tilt: -20° ~90° ,Presets: 300
Support 256GB on-board storage
IP67, IK10 (HVCP-4536KS Only)
ONVIF
Support 24VAC/ Hi-PoE
SPECIFICATION
Model HVCP-4536KS HVCP-4536IS
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination
Color: 0.002Lux@F1.5 (AGC ON)
B/W: 0.0001Lux@F1.5 (AGC ON)
Color: 0.002Lux@F1.5 (AGC ON)
B/W: 0.0002Lux@F1.5 (AGC ON), 0Lux (IR On)
Shutter Speed 1/1 ～ 1/30,000s
Day/ Night IR Cut Filter
S/N Ratio 54dB
WDR 120dB
Focal Length 5.7 ~ 205.2mm, 36x Optical Zoom
Digital Zoom 16x
Focus Mode Auto/Semi-automatic/Manual
FOV Horizontal: 59.8° ~ 2° , vertical: 33.6° ~ 1.1° (wide-tele) Horizontal: 51.1° ~ 1.7° , vertical: 31.3° ~ 1.1° (wide-tele)
Aperture F1.2 ~ F4.4
IR Range / 200m, Smart IR
PTZ
Pan Range 360° endless
Pan Speed 0.1° ~ 350° /s, preset speed: 540° /s 0.1° ~ 210° /s, preset speed: 280° /s
Tilt Range -20° ~ 90° (auto-flip)
Tilt Speed 0.1° ~ 240° /s, preset speed: 400° /s 0.1° ~ 150° /s, preset speed: 250° /s
Presets 300
Proportional Zoom Support
Patrol Scan 8
Pattern Scan 4
Power-off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display Support
Audio & Video Codec
Video Compression H.265/ H.264/ MJPEG (Sub stream only)
Resolution
Main Stream: 50Hz: 2560 × 1440@25fps; 60Hz: 2560 × 1440@30fps
Sub Stream: 50Hz:704 × 576@25fps; 60Hz: 704 × 480@30fps
Third Stream: 50Hz: 1920 × 1080@25fps; 60Hz: 1920 × 1080@30fps
H.265 Type Main Profile
H.264 Type Baseline Profile/ Main Profile / High Profile
Video Bit Rate 32Kbps ~ 16Mbps
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32~128Kbps(MP2L2)
Audio & Video Function
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
ROI support 8 fixed areas
Privacy Mask 24 privacy masks
Video Analysis
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object
Removal Detection, Unattended Baggage Detection, Object Auto Tracking
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP,
DHCP, PPPoE, Bonjour
ONVIF ONVIF(Profile S, Profile G, Profile T)
Web Browser IE8 or above
Simultaneous Live View 20
Security Password protection, HTTPS encrypted data transmission, IEEE802.1x Authentication, IP address filter
Model HVCP-4536KS HVCP-4536IS
Interface
Network 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm 7 x Alarm in, 2 x Alarm out
Analog output 1 x BNC
Audio Output 1 x Audio input, 1 x Audio output
RS485 Pelco-P, Pelco-D
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
General
Operating Temperature -40° C ～ 70° C
Operating Humidity ≤90%
Protection Level IP67, IK10 IP67
Power Supply 24 VAC/ Hi-PoE
Power Consumption Max. 60W
Material Body: Metal
Dimensions Φ 231.1 × 355.6 mm Φ266.6 × 410 mm
Weight 6kg 8kg
Note: Honeywell reserves the right, without notification, to make changes in product design or specifications.
ORDERING
HVCP-4536KS
4MP 36x Speed Dome Network Camera, 1/1.8" Progressive scan CMOS, H.265/
H.264/ MJPEG, TDN, 120dB WDR, 36x Optical zoom, 16x Digital zoom, HLC, BLC,
EIS, defog, Object Auto-Tracking, support 256GB on-board storage, ONVIF, IP67,
IK10, 24VAC/ Hi-PoE
HVCP-4536IS
4MP 36x IR Speed Dome Network Camera, 1/1.8" Progressive scan CMOS, H.265/
H.264/ MJPEG, TDN, 200m IR, 120dB WDR, 36x Optical zoom, 16x Digital zoom,
HLC, BLC, EIS, defog, Object Auto-Tracking, support 256GB on-board storage,
ONVIF, IP67, 24VAC/ Hi-PoE
HVCP-ACM Celling mount bracket for HVCP-4536IS
HVCP-AWM Wall mount bracket for HVCP-4536IS
HVCP-ACM1 Celling mount bracket for HVCP-4536KS
HVCP-AWM1 Wall mount bracket for HVCP-4536KS
