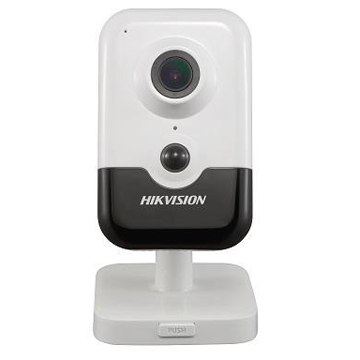

DS-2CD2443G0-IW HIKVISION wifi Cube network Camera
DS-2CD2443G0-I(W) 4 MP IR Fixed Cube Network Camera
2688 × ?1520@30fps
IR: 10 m
PIR: 10m
H.265, H.265+
120dB WDR
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
PoE
EXIR
Wi-Fi (Optional)
Camera
Image Sensor: 1/3" Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°
4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°
Lens Mount: M12
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night: IR Cut Filter
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Fixed
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile: Main Profile/High Profile
Video bit rate: 256Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Triple Streams: Yes
Max. Image Resolution: 2688 × 1520
Frame Rate: 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR/ROI/HLC
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI: Support 1 fixed region for main stream and sub-stream separately
Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm in
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, QoS, IPv6
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Interface
Audio: 1 built-in mic, 1 built-in speaker, mono sound
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis: Line crossing detection, intrusion detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Recognition: Face Detection
Wi-Fi Specification (-W)
Wireless Standards: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.412 GHz to 2.4835 GHz
Channel Bandwidth: 20/40MHz Support
Security: WPA, WPA2
Transmission Rate: 11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Wireless Range: 50m(depend on environment)
Protocols: 802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
General
Operating Conditions: -10 °C – 40°C (14 °F – 104 °F), Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power
PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W
IR Range: Up to 10m
PIR: 10m
Dimensions: 102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
Weight: Camera: Approx. 128 g (0.3 lb.)
