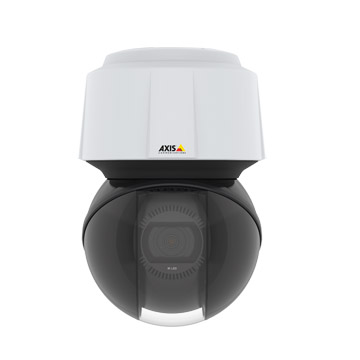

AXIS Q6125-LE PTZ Network Camera
DISCONTINUED PRODUCT.
SUPPORT EXPIRES 2027-01-15.
After this date, please see the product documentation and support pages for self-help resources.
NOTE
Please note that products shipped from Axis to the original purchaser after the product discontinuation date may come with a limited hardware warranty. Please stay updated on warranty coverage when buying products after their final order date by consulting the Axis 5-year limited hardware policy.
Recommended replacements:
AXIS Q6135-LE
For full specifications, check the recommended replacement product datasheet by using the link(s) above.
Technical specifications
Models: AXIS Q6125-LE 50 Hz / AXIS Q6125-LE 60 Hz / AXIS Q6125-LE 60 Hz (Local)
Camera
Image sensor CMOS
Image sensor size 1/2.8
Lightfinder Lightfinder
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.15 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
General
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -50 to 50 °C
Outdoor Ready Yes
Vandal rating IK08
IP rating IP66
Designed for repaint Yes
Analytics
Autotracking version Autotracking 1
Orientation aid –
Video
Max video resolution 1920x1080
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization Yes
Lens
Focal length 4.3 - 129 mm
Horizontal field of view 63.5 - 2.3 °
Vertical field of view 38.4 - 1.3 °
Pan, Tilt, Zoom
Pan range 360 endless
Tilt range +20 to -90
Guard tour preset position tour
Optical zoom 30
Digital zoom 12
Compression
Zipstream Yes
H.264 High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support –
Built-in microphone –
System Integration
Audio detection –
Active tampering –
Alarm inputs/outputs –
Network
PoE Class High PoE
Security
Signed firmware Yes
Secure boot –
TPM –
