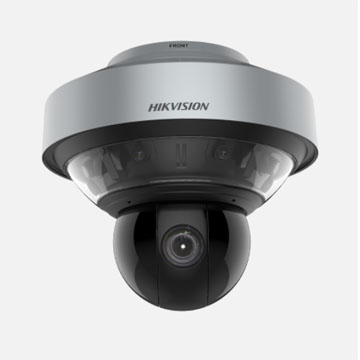

DS-2DP0818ZIXS-DE/440(F0)(P4) 8MP 180° Panoramic & PTZ Camera
Focus
Auto, semi-auto, manual, rapid focus
Focal Length
[Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240 mm
Related Accessories
DS-1603ZJ-P
Wall mount
DS-1603ZJ-Pole-P
Vertical pole mount
DS-1668ZJ-P
Pendant Mount
DS-1668ZJ(20)
Pendant Mount
DS-2DP1618ZIXS-DE/440(F0)(P4)16MP 180° Panoramic & PTZ Camera
Focus
Auto, semi-auto, manual, rapid focus
Focal Length
[Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240 mm
DS-2DP3236ZIXS-D/440(F0)(P5)32MP 360° Panoramic & PTZ Camera
Focus
Auto, semi-auto, manual, rapid focus
Focal Length
[Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240 mm
DS-2DP3236ZIXS-D/440(F0)(P4)32MP 360° Panoramic & PTZ Camera
Focus
Auto, semi-auto, manual, rapid focus
Focal Length
[Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240 mm
DS-2DP2427ZIXS-DE/440(F0)(P4)24MP 270° Panoramic & PTZ Camera
Focus
Auto, semi-auto, manual, rapid focus
Focal Length
[Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240 mm
-
Camera
-
Image Sensor[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
-
Min. Illumination
[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON);
[PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
-
Shutter Speed1 s to 1/30000 s
-
Slow ShutterYes
-
Day & NightIR cut filter
-
Zoom[PTZ channel] 40x optical, 16x digital
-
DORI
D: 4137.9 m
O: 1642.0 m
R: 827.6 m
I: 413.8 m
-
Max. Resolution4096 × 1800
-
Lens
-
FocusAuto, semi-auto, manual, rapid focus
-
Focal Length[Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240 mm
-
Zoom Speed[PTZ channel] Approx. 5.6 s
-
FOVHorizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
-
ApertureMax. F1.0
-
Illuminator
-
Supplement Light TypeIR
-
Supplement Light RangeUp to 250 m
-
Smart Supplement LightYes
-
PTZ
-
Movement Range (Pan)360°
-
Movement Range (Tilt)-15° to 90° (auto flip)
-
Pan SpeedPan speed: configurable from 0.1° to 210°/s; preset speed: 240°/s
-
Tilt SpeedTilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
-
Proportional Pan[Panoramic channel]: no; [PTZ channel]: yes
-
Presets300
-
Patrol Scan8 patrols, up to 32 presets for each patrol
-
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
-
Power-Off MemoryYes
-
Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
-
3D PositioningYes
-
PTZ Status DisplayYes
-
Preset FreezingYes
-
Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
-
Video
-
Main Stream
[Panoramic channel]:
50Hz:25fps (4096×1800,3840×1680,2720×1192),
60Hz: 30fps (4096×1800,3840×1680,2720×1192);
[PTZ channel]:
50Hz:25fps (2560x1440,1920×1080,1280×960,1280x720)
60Hz:30fps (2560x1440,1920x1080,1280x960,1280x720)
-
Sub-Stream
[Panoramic channel]:
50Hz:25fps (704×320,512×232),
60Hz:30fps (704×320, 512×232);
[PTZ channel]:
50Hz: 25fps(704×576,640×480,352×288);
60Hz:30fps(704×480,640×480,352×240);
-
Third Stream
[Panoramic channel]: no
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
-
Audio
-
Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
-
Audio Sampling RatePCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz
-
Network
-
Network StorageNAS (NFS, SMB/CIFS), ANR
-
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
-
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
-
Simultaneous Live ViewUp to 20 channels
-
User/HostUp to 32 users. 3 user levels: administrator, operator, and user
-
SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
-
ClientiVMS-4200, HikCentral Pro, Hik-Connect
-
Web BrowserIE10-11, Chrome 57+, Firefox 52+, Safari 12+
-
-
Day/Night SwitchDay, night, auto, scheduled-switch
-
Image EnhancementBLC, HLC, 3D DNR
-
Wide Dynamic Range (WDR)[Panoramic channel] no, [PTZ channel] 120 dB
-
Defog[Panoramic channel]: no; [PTZ channel]: optical defog
-
Image StabilizationEIS
-
Regional ExposureYes
-
Regional FocusYes
-
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
-
Image Parameters SwitchYes
-
Privacy MaskProgrammable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable
-
SNR≥ 55 dB
-
Interface
-
Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
-
Fiber Optical1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance
-
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
-
Alarm7 alarm inputs, 2 alarm outputs
-
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
-
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
-
ResetYes
-
Event
-
Smart EventLine crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
-
Smart TrackingManual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes
-
Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
-
Deep Learning Function
-
Face Capture
Detects up to 30 faces simultaneously,
Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
-
People DensitySupports detecting the level of people density in the configured area
-
Congestion AlarmYes
-
General
-
Power36 VDC, max. 135 W (including max. 12 W for IR);Hi-POE, max. 75 W
-
Operating Condition-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
-
WiperNo
-
DemistYes
-
MaterialADC12
-
Dimension? 433.5 mm x 430.4 mm (? 17.07" x 16.94")
-
WeightApprox. 18 kg (39.68 lb.)
-
Approval
-
Safety
UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
BIS (IS 13252(Part 1):2010/IEC 60950-1: 2005);
LOA (IEC/EN 60950-1)
-
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
-
ProtectionIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
