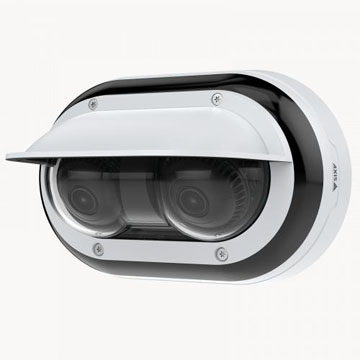

AXIS P4707-PLVE Panoramic Camera
Dual-sensor with 360° IR and deep learning
2*5 MP, multidirectional camera, with one IP address
Support for analytics with deep learning on both sensors
360° IR illumination
2.5x zoom
Axis Lightfinder and Forensic WDR
Technical specifications
Models: AXIS P4707-PLVE
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2.7
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.19 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Property description Property value
Max video resolution 2592x1944
Max frames per second 30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 3.26-8.12 mm
Horizontal field of view 180 °
Vertical field of view 69.47-27.22 °
Pan, Tilt, Zoom
Property description Property value
Remote PTRZ –
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Built-in microphone –
Network
Property description Property value
PoE Class 4
Wireless –
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
Axis Edge Vault Yes
General
Property description Property value
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -30 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66, IP67
Designed for repaint –
Sustainability BFR/CFR free, PVC free
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS P4707-PLVE AR, AU, BR, CN, EU, JP, KR, UK, US
02416-001
-
