Detail

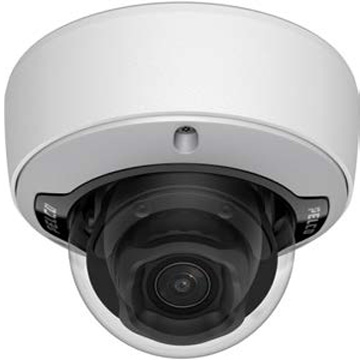

SRXP4-5V10-EMD Pelco PROFESSIONAL 4 CAMERA SERIES
The Sarix® Professional 4 Series is a versatile, cost-effective security solution with enhanced imaging capabilities. The
camera line can produce high-quality video with sharp details even in low-light conditions. The series is weather and impact
resistant, making it an optimal choice for various industries and complex environments.
Equipped with Pelco Smart Analytics, powered by Motorola Solutions, this series helps to detect critical events and increase
security teams’ productivity by expediting real-time responses and forensic investigations.
Image Sensor 1/2.8” progressive scan CMOS
Imaging Area (H × V) 5.57 mm × 3.13 mm
0.219” × 0.123”
5.18 mm × 3.89 mm
0.204” × 0.153”
Aspect Ratio 16 × 9 4 × 3
Dynamic Range
WDR Off 83 dB
WDR On 126 dB 130 dB
Camera Operating Mode N/A N/A Full Feature/High Framerate
Max Frame Rate (50 Hz/60 Hz): 50 fps/60 fps (50 Hz/60 Hz): 25 fps/30 fps
Streaming
Resolutions1
Primary Stream 1920 × 1080, 1440 × 1080 2048 × 1152, 1920 × 1080,
2048 × 1536, 1792 × 1344
2560 × 1440, 1920 × 1080,
2592 × 1944, 2240 × 1680
Secondary
Stream
1920 × 1080, 1280 × 720, 768 × 432,
640 × 360, 512 × 288, 384 × 216,
1440 × 1080, 1280 × 960, 960 × 720,
800 × 600, 640 × 480, 384 × 288
1760 × 1320, 1600 × 1200, 960 × 720,
384 × 216, 1600 × 1200, 1280 × 960,
960 × 720, 640 × 480, 512 × 384, 384 × 288
1920 × 1080, 1280 × 720, 768 × 432,
640 × 360, 512 × 288, 384 × 216,
1600 × 1200, 1440 × 1080, 1280 × 960,
800 × 600, 640 × 480, 512 × 384, 384 × 288,
368 × 264
Tertiary Stream 640 × 360, 512 × 384 640 × 360, 640 × 480 640 × 360, 512 × 384
Bandwidth Management Pelco Smart Compression technology; Idle scene mode
3D Noise Reduction Filter Supported
Available stream options may vary based on the combination of resolution and frame-rates selected for the individual streams, as well as the camera operating mode.
SRXP4-2V10-IMD
SRXP4-2V10-IMD-IR
SRXP4-2V10-EMD
SRXP4-2V10-EMD-IR
SRXP4-3V10-IMD
SRXP4-3V10-IMD-IR
SRXP4-3V10-EMD
SRXP4-3V10-EMD-IR
SRXP4-5V10-IMD
SRXP4-5V10-IMD-IR
SRXP4-5V10-EMD
SRXP4-5V10-EMD-IR
SRXP4-2V10-EBT-IR
SRXP4-3V10-EBT-IR
SRXP4-3V29-EBT-IR
SRXP4-3V40-EBT-IR
SRXP4-5V10-EBT-IR
SRXP4-5V29-EBT-IR
SRXP4-5V40-EBT-IR
ACCESSORIES
PART NUMBER DESCRIPTION
WMVE-AW Wall Mount Arm for 1.5" NPT Pendant
PA101-AW Pole Mount Adapter for WMVE-AW
IMM-CM-AW Corner Mount for WMVE-AW
USB-AC56-NA-MSI USB WiFi Adapter Install Kit (North America)
USB-AC56-EU-MSI USB WiFi Adapter Install Kit (Europe)
SLSPCIL-1001 In-ceiling mounting adapter for Sarix Pro 4 Dome Camera
SRXP4-PM-1E Pendant NPT adapter for Sarix Pro 4 Dome Camera
DCLPNL-1001 Metal ceiling panel for suspended ceiling installations
SRXP4-DMSLD Weathershield for Sarix Pro 4 Dome Camera
ACMICR-1001 Microphone accessory for Indoor Sarix Pro 4 Dome Camera
SRXP4-LD-1E Clear lower dome for Sarix Pro 4 Environmental Dome Camera
SRXP4-LD-0E Smoked lower dome for Sarix Pro 4 Environmental Dome Camera
SRXP4-LD-1I Clear lower dome for Sarix Pro 4 Indoor Dome Camera
SRXP4-LD-0I Smoked lower dome for Sarix Pro 4 Indoor Dome Camera
CNCVR-1001 Adapter 3/4 inch conduit for Sarix Pro 4 Dome Camera, 5-pack
AVIO-3500 3.5 mm audio I/O jack with 1.8 m fly wire
CAM-FIPS Camera license to enable FIPS Level 1 cryptographic mode
CRNMT-1001 Corner Mount for Sarix Pro 4 Bullet Camera
PLMT-1001 Pole Mount for Sarix Pro 4 Bullet Camera
