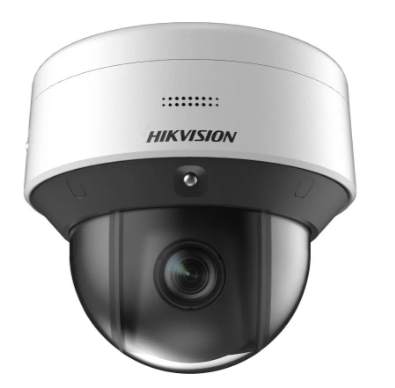

DS-2DE3C210IX-DE(C1)(T5) DS-2DE3C210IX-DE(C1)(T5)3-inch 2 MP 10X Powered by DarkFighter IR Network Speed Dome Camera
High quality imaging with 2 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
10x optical zoom and 16x digital zoom provide close up views over an expansive area
Up to 50 m IR range ensures safety at night
Supports face capture, detects, captures, grades and selects faces in motion, and outputs the best face picture
Water and dust resistant (IP66)
-
Camera
-
Image Sensor1/1.8" Progressive Scan CMOS
-
Max. Resolution1920 × 1080
-
Min. IlluminationColor: 0.005 Lux @ (F1.3, AGC ON), B/W: 0.001 Lux @ (F1.3, AGC ON), 0 Lux with IR
-
Shutter Speed1/1 to 1/30,000 s
-
Day & NightIR cut filter
-
Zoom10x optical, 16x digital
-
Slow ShutterYes
-
Lens
-
Focal Length2.8 to 28 mm
-
FOVHorizontal FOV 108° to 19.8°, vertical FOV 56.4° to 11.5°
-
FocusAuto, semi-auto, manual
-
ApertureMax. F1.3
-
Zoom SpeedApprox. 6.0 s
-
Illuminator
-
Supplement Light TypeIR
-
Supplement Light RangeIR Distance: up to 50 m
-
Smart Supplement LightYes
-
PTZ
-
Movement Range (Pan)355°
-
Movement Range (Tilt)0° to 90°
-
Pan SpeedPan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
-
Tilt SpeedTilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
-
Proportional ZoomYes
-
Presets300
-
Preset FreezingYes
-
Park ActionPreset, patrol scan
-
3D PositioningYes
-
PTZ Status DisplayYes
-
Scheduled TaskPreset, patrol scan, dome reboot, dome adjust, auxiliary output
-
Power-Off MemoryYes
-
Video
-
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
-
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
-
Video Bit Rate32 Kbps to 16 Mbps
-
H.264 TypeBaseline Profile/Main Profile/High Profile
-
H.265 TypeMain profile
-
Scalable Video Coding (SVC)H.264 and H.265 encoding
-
Region Of Interest (ROI)8 fixed regions for each stream
-
Audio
-
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC
-
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
-
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
-
Environment Noise FilteringYes
-
Network
-
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
-
Simultaneous Live ViewUp to 20 channels
-
APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
-
User/HostUp to 32 users; 3 user levels: administrator, operator, and user
-
SecurityPassword protection, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2/1.3, host authentication (MAC address)
-
Network StorageNAS (NFS, SMB/CIFS), ANR
-
ClientiVMS-4200, HikCentral Pro, Hik-Connect
-
Web BrowserChrome 57+, Firefox 52+, Safari 11+, IE11
-
-
Image Parameters SwitchYes
-
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
-
Day/Night SwitchDay, Night, Auto, Schedule
-
Wide Dynamic Range (WDR)120 dB
-
SNR≥ 55 dB
-
DefogDigital Defog
-
Image StabilizationEIS
-
Image EnhancementBLC, HLC, 3D DNR
-
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
-
Regional FocusYes
-
Regional ExposureYes
-
Interface
-
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
-
On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
-
Built-In Microphone1 built-in microphone
-
Built-In Speaker1 built-in speaker
-
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
-
Alarm1 input, 1 output
-
Power Output12 VDC, max. 0.7 W
-
Event
-
Basic EventMotion detection, video tampering alarm, exception, alarm input and output
-
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
-
Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan)
-
Deep Learning Function
-
Face CaptureDetects up to 30 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture of the face
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
-
General
-
Power12 VDC, Max. 24 W; PoE (802.3at)
-
Dimension? 156.4 mm × 142.1 mm (? 6.16" × 5.59")
-
WeightApprox. 1.90 kg (4.19 lb.)
-
MaterialMetal
-
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
-
General FunctionMirror, password protection
-
Approval
-
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019);
KC (KN 32: 2015, KN 35: 2015)
-
Safety
UL (UL 62368-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017);
-
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
-
ProtectionIP66 (IEC 60529-2013)
