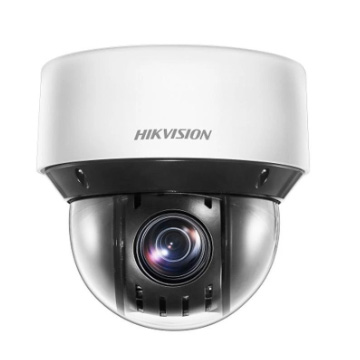

DS-2DE4A225IWG-E 4-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome
DS-2DE4A425IWG-E 4-inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome
High quality imaging with 4 MP resolution, up to 30 fps
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
25 × optical zoom allows for closer viewing of subjects in expansive areas
Up to 50 m IR range ensures safety at night
Water and dust resistant (IP66)
Focuses on human and vehicle targets classification based on deep learning

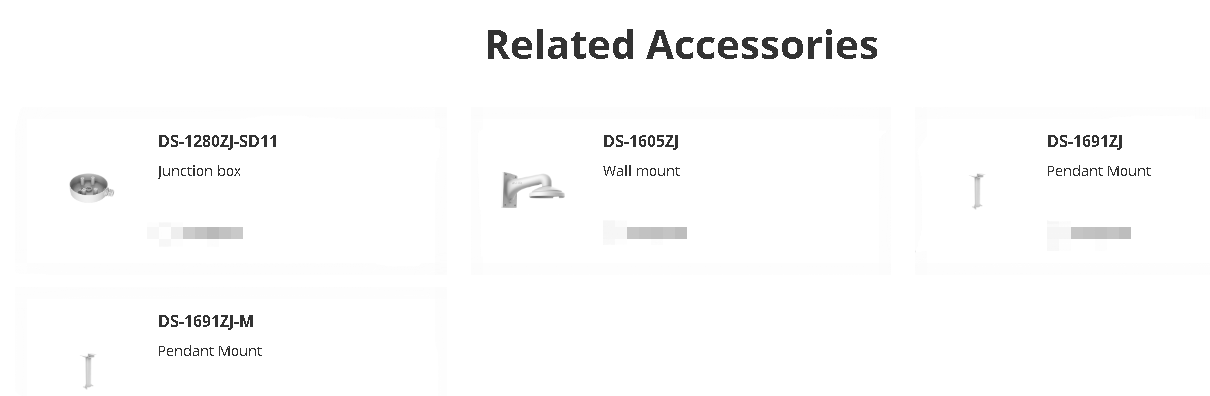

Related Accessories
DS-1280ZJ-SD11
Junction box
DS-1605ZJ
Wall mount
DS-1691ZJ
Pendant Mount
DS-1691ZJ-M
Pendant Mount
-
Camera
-
Image Sensor1/2.8" Progressive Scan CMOS
-
Max. Resolution1920 × 1080
-
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
-
Shutter Speed1/1 s to 1/30,000 s
-
Day & NightIR cut filter
-
Zoom25 × optical, 16 × digital
-
Slow ShutterYes
-
Lens
-
Focal Length4.8 to 120 mm
-
FOVHorizontal FOV 54.9° to 2.7°, vertical FOV 31.5° to 1.5°, diagonal FOV 62.3° to 3.1°
-
FocusAuto, semi-auto, manual
-
ApertureMax. F1.6
-
Zoom SpeedApprox. 3.4 s
-
Illuminator
-
Supplement Light TypeIR
-
Supplement Light RangeIR Distance: up to 50 m
-
Smart Supplement LightYes
-
IR Wavelength850 nm
-
PTZ
-
Movement Range (Pan)0° to 360°
-
Movement Range (Tilt)-5° to 90°
-
Pan SpeedPan speed: configurable from 0.1° to 300°/s; preset speed: 350°/s
-
Tilt SpeedTilt speed: configurable from 0.1° to 160°/s, preset speed 200°/s
-
Proportional ZoomYes
-
Presets300
-
Preset FreezingYes
-
Patrol Scan8 patrols, up to 32 presets for each patrol
-
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
-
Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
-
3D PositioningYes
-
PTZ Status DisplayYes
-
Scheduled Taskpreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust
-
Power-Off MemoryYes
-
Video
-
Main Stream
50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720)
*High frame rate is supported under certain settings.
-
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
-
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
-
H.264 TypeBaseline Profile/Main Profile/High Profile
-
H.265 TypeMain profile
-
Scalable Video Coding (SVC)H.264 and H.265 encoding
-
Region Of Interest (ROI)8 fixed regions for each stream
-
Audio
-
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
-
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/128 to 1024 Kbps (PCM)/16 to 64 Kbps (AAC-LC)
-
Audio Sampling RateAAC-LC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
-
Environment Noise FilteringYes
-
Network
-
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour,WebSocket,WebSockets
-
Simultaneous Live ViewUp to 20 channels
-
APIOpen Network Video Interface (Version 19.12), Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
-
User/HostUp to 32 users; 3 user levels: administrator, operator, and user
-
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
-
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
-
ClientiVMS-4200, HikCentral Pro, Hik-Connect
-
Web BrowserIE 10 to 11, Chrome 57+, Firefox 52+, Safari 11+
-
-
Image Parameters SwitchYes
-
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
-
Day/Night SwitchDay, Night, Auto, Schedule
-
Wide Dynamic Range (WDR)120 dB
-
SNR>52 dB
-
DefogDigital Defog
-
Image EnhancementBLC, HLC, 3D DNR
-
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
-
Regional FocusYes
-
Regional ExposureYes
-
Interface
-
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
-
On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
-
Audio1 input (line in), max. input amplitude: 1Vrms, input impedance: 4.7 KΩ ± 5%; 1 output (line out), line level, output impedance:100Ω±5%
-
Alarm2 inputs, 2 outputs
-
ResetYes
-
Event
-
Basic EventMotion detection, video tampering alarm, exception, alarm input and output
-
Smart Eventline crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
-
Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
-
Smart TrackingManual tracking,auto-tracking
-
Deep Learning Function
-
Face Capture
Detects up to 5 faces simultaneously,
Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
-
General
-
Power12 VDC, Max. 24 W; PoE (802.3at)
-
Dimension? 169 mm × 161 mm (? 6.65" × 6.34")
-
WeightApprox. 2.45 kg (5.40 lb.)
-
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
-
General FunctionMirror, password protection
-
Approval
-
ProtectionIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
-
Application Scene
-
Application Scene-
