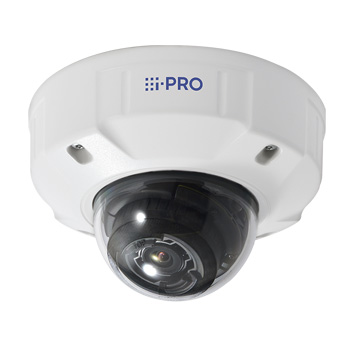

WV-S2572L i-PRO Extreme H.265 Dome Network camera

Brand：i-PRO Panasonic
Model：WV-S2572L
Focal length 4.3mm-8.6mm

Detail

WV-S2572L i-PRO Extreme H.265 Dome Network camera
4K Vandal Resistant Outdoor Dome Network Camera
4K (3,840 x 2,160) up to 30fps
Intelligent Auto
Color night vision (0.006 to 0.09 lx)
H.265 Smart Coding
i-VMD License Bundled
FIPS140-2 CAVP compliant
*Using encryption module standardized by FIPS publication 140-2
NDAA Compliant
Extreme image quality allows evidence to be captured even under challenging conditions
- True 4K lens and large image sensor realize wide area surveillance with improved high-quality images
- Auto shutter speed control for moving objects
- Outstanding low-light performance in true color with low noise for nighttime applications
- Built-in IR LED to produce a clear monochrome image in 0 lux conditions with 40 m (131 feet) irradiation distance
- Environmental durability: IP66, IK10
Extreme bandwidth compression with evolved Smart Coding
- Longer recording and less storage requirements compared to traditional H.265 compression techniques
- Improved video compression technology detects objects such as faces, humans, vehicles and motorcycles / bicycles within the image and compresses the areas without objects in order to reduce transmitted data while maintaining image quality
Easy installation
- Allows you to connect the network cable to the camera body simply by opening a part of the package, which saves you time and workspace, especially when handling multiple cameras
Camera
COMPONENT SPECIFICATION
Image Sensor 1/1.8 type CMOS image sensor
Minimum Illumination Color : 0.09 lx, BW : 0.05 lx
(F1.5, Maximum shutter : Off (1/30s), AGC : 11)
BW : 0 lx
(F1.5, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit)
Color : 0.006 lx, BW : 0.003 lx
(F1.5, Maximum shutter : max. 16/30s, AGC : 11)
White Balance ATW1/ ATW2/ AWC
Shutter Speed [30fps mode] 1/30 Fix to 1/10000 Fix [25fps mode] 1/25 Fix to 1/10000 Fix
Intelligent Auto On / Off
Super Dynamic On / Off, The level can be set in the range of 0 to 31.
Dynamic Range Max. 132 dB (Super Dynamic : On, Level : 31)
Adaptive Black Stretch The level can be set in the range of 0 to 255.
Back Light Compensation/High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off
The level can be set in the range of 0 to 31.
(only when Super dynamic / Intelligent Auto : Off)
Fog Compensation On / Off, The level can be set in the range of 0 to 8
(only when Intelligent auto / auto contrast adjust : Off)
Maximum Gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
IR LED Light High / Middle / Low / Off,
Maximum irradiation distance : 40 m {Approx. 131 ft}
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On / Off, 4 areas available
Scene Change Detection(SCD) On / Off, 1 areas available
Intelligent VMD (i-VMD) Type 7 *Bundled License
Privacy Zone On / Off, Up to 8 zones available
Image Rotation 0 ° (Off) / 90 °/ 180 ° (Upside-down)/ 270 °
Camera Title (OSD) On / Off, Up to 20 characters (alphanumeric characters, marks)
Lens
COMPONENT SPECIFICATION
Optical Zoom 2.0x (Motorized zoom / Motorized focus)
Extra optical zoom 6.0x (when resolution is 1280x720)
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Focal length 4.3 mm - 8.6 mm {5/32 inches – 11/32 inches}
Maximum Aperture Ratio 1 : 1.5 (WIDE) – 1 : 2.4 (TELE)
Focusing Range 1 m {39-3/8 inches} – ∞
Angular Field of View [16 : 9 mode] *[4:3 mode] is not supported.
Horizontal : 52° (TELE) – 101° (WIDE), Vertical: 29° (TELE) – 55° (WIDE)
DORI
COMPONENT SPECIFICATION
Detect (25ppm / 8ppf) Wide: 63.31 m / 207.71 ft, Tele: 157.46 m / 516.61 ft
Observe (62.5ppm / 19ppf) Wide: 25.32 m / 83.08 ft, Tele: 62.99 m / 206.64 ft
Recognize (125ppm / 38ppf Wide: 12.66 m / 41.54 ft, Tele: 31.49 m / 103.32 ft
Identify (250ppm / 76ppf) Wide: 6.33 m / 20.77 ft, Tele: 15.75 m / 51.66 ft
Adjusting Angle
COMPONENT SPECIFICATION
Adjusting Angle Horizontal (PAN) angle : ±180°, Vertical (TILT) angle : -30 to +85°,
Azimuth (YAW) angle : ±100°
Browser GUI
COMPONENT SPECIFICATION
Camera Control Brightness, AUX On / Off
Audio Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High
Audio Output : On / Off Volume adjustment : Low / Middle / High
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network
COMPONENT SPECIFICATION
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG) [16 : 9 mode] *[4:3 mode] is not supported.
3840×2160, 2560×1440, 1920×1080, 1280×720, 640×360, 320×180
H.265/H.264 [Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast
JPEG [Image Quality]
10 steps
Smart Coding GOP (Group of pictures) control :
On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off
*On (Frame rate control) and On (Advanced) are only available with H.265.
Auto VIQS : On / Off
Audio Compression G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps
AAC-LC : 64 kbps / 96 kbps / 128 kbps
Audio Transmission Mode Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD,
ICMP, ARP, IEEE 802.1X, DiffServ, SSL/TLS, SRTP, SFTP, MQTT, LLDP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,
SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP,
ARP, IEEE 802.1X, DiffServ, SSL/TLS, SRTP, SFTP, MQTT, LLDP
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card H.265 / H.264 recording :
Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
JPEG recording : Manual REC / Alarm REC (Pre/Post)
Compatible SDXC/SDHC/SD Memory Card :
Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**model
*SDHC card, ** SDXC card (except miniSD card and microSD card)
Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals
ONVIF® Profile G / S / T
Alarm
COMPONENT SPECIFICATION
Alarm Source 3 terminals input, VMD alarm, SCD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification,
Indication on browser, TCP alarm notification output
Input/Output
COMPONENT SPECIFICATION
Monitor Output (for Adjustment) VBS : 1.0 V [p-p] / 75 Ω, composite, ?3.5 mm mini jack
An NTSC or PAL signal can be outputted from camera
Audio input ?3.5 mm stereo mini jack

For microphone input : Recommended applicable microphone : Plug-in power type
(Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
Input impedance : Approx. 2 kΩ (unbalanced)
Supply voltage : 2.5 V ±0.5 V

For line input : Input level: Approx. –10 dBV
Audio Output ?3.5 mm stereo mini jack (Audio output is monaural.)
Output impedance : Approx. 600 Ω (unbalanced)
Output level : –20 dBV
External I/O Terminals ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)
ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) , ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)
General
COMPONENT SPECIFICATION
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption DC power supply : DC 12 V 980 mA/Approx. 11.8 W
PoE (IEEE802.3af compliant) Device : DC48 V 260 mA/ Approx. 12.5 W (Class 0 device
Ambient Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)*10
(Power On range : –30 °C to +60 °C {–22 °F to +140 °F})
Ambient Operating Humidity 10 to 100 % (no condensation)
Dehumidification Device Temish element+Fan/Heater
Anti-Condensation System Temish element
Water and Dust Resistance IP66 (IEC60529), Type 4X(UL50E), NEMA 4X compliant
Shock Resistance 50J (IEC 60068-2-75 compliant), IK10 (IEC 62262)
Wind Resistance Up to 40 m/s {approx. 89 mph}
Dimensions When using base bracket : ?164 mm × 139 mm (H) {?6-15/32 inches × 5-15/32 inches (H)}
Dome radius 42 mm {1-21/32 inches}
When using attachment plate only : ?154 mm × 103 mm (H) {?6-1/16 inches × 4-1/16 inches (H)}
Dome radius 42 mm {1-21/32 inches}
Mass When using base bracket : Approx. 1.6 kg {3.53 lbs}
When using attachment plate only : Approx. 1.2 kg {2.65 lbs}
Finish Main body : Aluminum die cast, i-PRO white
Outer fixing screws : Stainless steel (Corrosion-resistant treatment)
Dome cover : Polycarbonate resin, Clear
NOTES
Important
– Safety Precautions : Carefully read the Basic Information,Installation Guide and Operating Instructions before using this product.
– i-PRO Co., Ltd. cannot be held responsible for the performance of the network and/or other manufacturers' products used on the network.
– Masses and dimensions are approximate. Specifications are subject to change without notice.
