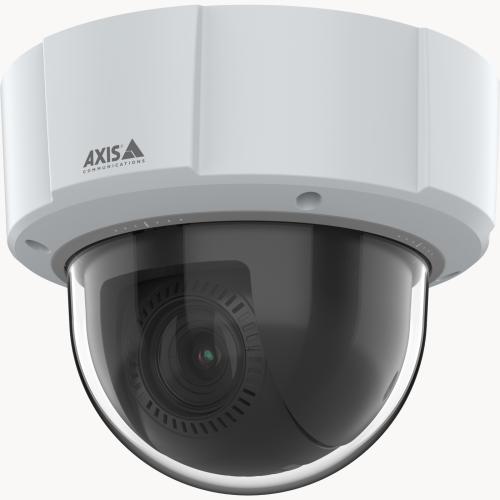

AXIS M5526-E PTZ Camera
Indoor and outdoor 4 MP with 10x zoom and focus recall
4 MP and 10x optical zoom
Continuous 360° pan
Support for analytics with deep learning
Compact design
24V with audio and I/O connectivity
Ideal both indoors and out, this affordably priced camera offers great image quality in 4 MP with 10x optical zoom. And, with a deep learning processing unit, it enables advanced features and powerful analytics that run on the edge.
Don’t miss a thing
AXIS M5526-E delivers great image quality in 4 MP. It offers a continuous 360° pan and with 10x optical zoom, you can benefit from sweeping overviews and zoom-in to get the details. Thanks to autofocus it ensures detailed, sharp images—every time. Plus, day/night functionality provides high-quality black-and-white video with improved sensitivity in even lower light. Furthermore, it includes Forensic WDR for clarity when there’s both dark and light areas in the scene.
Flexible installations—indoors and out
AXIS M5526-E is compatible with all Axis PTZ mounts and can be mounted both indoors and out. It comes with three scene profiles (indoor, outdoor, and forensic) with different image settings optimized to suit specific scenarios. Plus, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Built on ARTPEC 8, the latest Axis system-on-chip (SoC), it includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. And thanks to AXIS Object Analytics, it can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs.
Enjoy more for less
This affordably priced camera offers great value for money. It delivers great image quality in 4MP. And with audio and I/O connectivity, you can integrate peripheral equipment for instance a microphone to extend the value of your system. Axis Zipstream with H.264 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Technical specifications
DATASHEET (PDF)
Models: AXIS M5526-E 50 Hz / AXIS M5526-E 60 Hz
Camera
Property description Property value
Lightfinder Lightfinder 2.0
Min illumination/ light sensitivity (Color) 0.25 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Image sensor CMOS
Image sensor size 1/3"
Wide dynamic range Forensic WDR
General
Property description Property value
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature -20 to 50 °C
Outdoor Ready Yes
Vandal rating IK09
IP rating IP66
Designed for repaint Yes
Analytics
Property description Property value
Autotracking version –
Orientation aid –
Video
Property description Property value
Max video resolution 2688x1512
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 4.7 - 47 mm
Horizontal field of view 59.1 - 6.5 °
Vertical field of view 35 - 3.67 °
Pan, Tilt, Zoom
Property description Property value
Optical zoom 10
Pan range 360 endless
Tilt range 0 to 90
Guard tour limited guard tour
Digital zoom 12
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Built-in microphone –
System Integration
Property description Property value
Audio detection Yes
Active tampering Yes
Alarm inputs/outputs 4
Network
Property description Property value
PoE Class 3
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
TPM Cables & connectors
AXIS Long Range PoE Extender Kit
Robust solution for covering long distances
Edge storage
AXIS Surveillance Card 1 TB
High endurance microSDXC? card
AXIS Surveillance Card 128 GB
High endurance microSDXC? card
AXIS Surveillance Card 256 GB
High endurance micro SDXC? card
AXIS Surveillance Card 512 GB
High endurance microSDXC? card
AXIS Surveillance Card 64 GB
High endurance microSDXC? card
Mounts
AXIS T94P01L Recessed Mount
Outdoor mount for AXIS M55 Series
AXIS TQ5001-E Wall-and-Pole Mount
Power
AXIS 30 W Outdoor Midspan
For outdoor use, -40 °C to 65 °C (-40 °F to 149 °F)
AXIS T8061 Ethernet Surge Protector
Protects outdoor devices from power surges
AXIS T8120 Midspan 15 W 1-port
Power and data to your network device
AXIS TU8001 Ethernet Surge Protector
For use indoors or in an enclosure
Switches
D8004 unmanaged PoE switch
Your perfect entry-level PoE switch
AXIS T8504-E Outdoor PoE Switch
Managed, plug-and play outdoor switch
AXIS T8508 PoE+ Network Switch
8 port switch for efficient network management
AXIS T8516 PoE+ Network Switch
16 port switch for efficient network management
AXIS T8524 PoE+ Network Switch
24 port switch for efficient network management
HIDE DISCONTINUED PRODUCTS
The following compatible products have been discontinued.
Mounts
AXIS T91B62 Parapet Mount
AXIS T91L61 Wall-and-Pole Mount
Power
AXIS T81B22 DC 30 W Midspan 1-port
AXIS T8124-E Outdoor Midspan 60 W 1-port
Video decoders
AXIS T8705 Video Decoder–
AXIS M5526-E 60 Hz US, KR, JP, BR 02769-001
AXIS M5526-E 50 Hz UK, IN, EU, AU, AR 02768-001
AXIS M5526-E 50 Hz IN 02768-113
