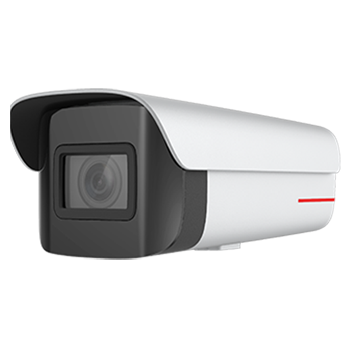

D2150-10-SIU-Up 5MP network Camera
Vehicle Mainland China plate recognition, body color detection, car model detection, car model detection
Vehicle event detection: non-occupancy detection, non-occupancy detection, illegal parking detection, retrograde/reversing detection
Traffic data statistics: traffic flow statistics, non-motor vehicle flow statistics, pedestrian statistics
Behavior analysis: fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection, battery car detection
Crowd situation analysis: queue length statistics, regional people statistics, people flow statistics
Target target detection, target attribute detection, target recognition
Human body detection
Machines are not humans Machines are not humans detection
Computing power 1 TOPS
Resolution 5MP 2560(H)*1920(V)
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.005Lux (F1.6, AGC ON), black and white: 0.0025Lux (F1.6, AGC ON), 0Lux (infrared on)
Lens focal length 2.8-12mm
Lens viewing angle: horizontal: 30.6° (T end) ~ 94° (W end); vertical: 24° (T end) ~ 70° (W end)
Infrared light fill distance 50m
Video encoding format MJPEG/H.264/H.265
Video frame rate 5MP 20fps, resolution less than 5MP 30/25fps can be set
Audio encoding format G.711a/G.711u/G.726/OPUS
1 drag N function supported
RS485 interface supported
Switching interface support
Ethernet interface supported
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 12.2W, Typical power consumption: 3.2W
Working temperature -30℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP67
Equipment anti-corrosion Class C anti-corrosion
