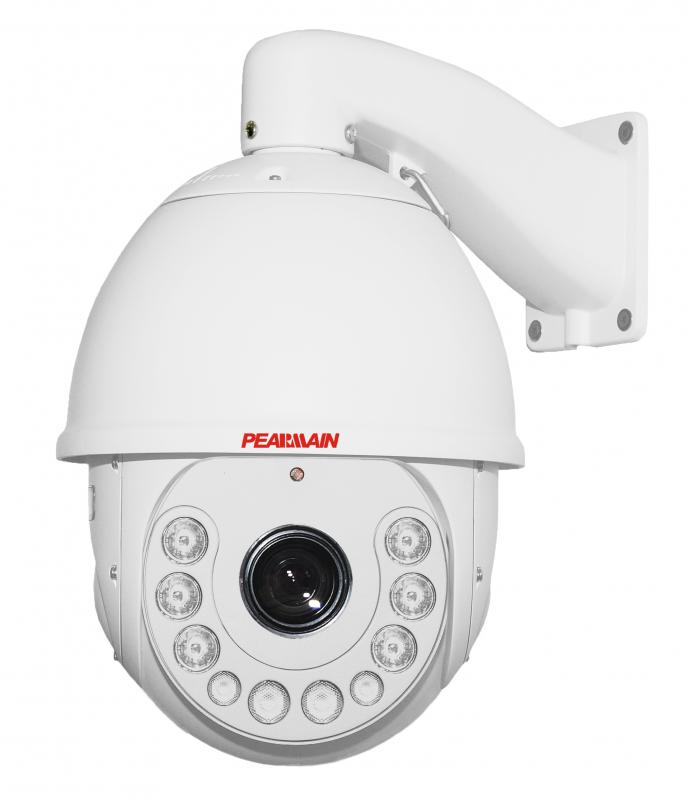

PE3036OS1-IP-IR Network HD IR High speed dome camera

Model:PE3036OS1-IP-IR

weight:4.5kg

lens:4.7-94mm

Detail
PE3036OS1-IP-IR Network HD IR High speed dome camera
PE3036OS1-IP-IR is Network HD IR High speed dome camera, having Sony FCB-EH6300, 1/2.8-type ‘Exmor’ CMOS, 20x optical zoom, 12x Digital zoom, Day/Night double-shell housing of aluminium for all applications, 100m IR distance.
Introduction Features
Support High definition output(1920x1080@30p)network encode output.
Support progressive scanning to have clear video, WDR.
Support remote firmware updating by TCP/IP.
It can set address & protocol in speed dome OSD menu
Automatically identify SANYO, SONY, HITACHI, CNB series etc. camera module.
Powerful OSD menu for setup of Programmable Functions
With function of auto focus, auto iris, auto white balance and auto backlight compensation etc. to have clear camera scene at any time.
Built-in linear power for anti-surge and anti-Lightning protection
Preset position storage function, it can save maximum 255 preset.
8 cruise tours, every tour can call 32 preset.
1 automatic scan, the scope of two limits can be scanned gradually, the scanning steps are optional.
Power-up action, preset, cruise tour, pattern tour, auto scan, etc. available for it.
360° continuous panning.
-5°~90° tilting rotation, automatic flip function, continuous tilting between -5°to 185
Privacy masking function, Up to 24 Zones, 8 Zones Masked Simultaneously in One Camera Image Soft address to set
On-Screen display: Compass, Pan, Tilt, Zoom ratio.
IP66 waterproof for outdoor applications

100m IR distance


Network

Video Compression

H.264 MP

Pixel

1920*1080

Frame Rate

1080p/29.97fps, 1080p/25fps, 720p/59.94fps, 720p/50fps

Network

10/100M

Protocol

TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE,SMTP,NTP etc...

Port

RJ-45,10/100Base-T

Video detection

support

Network

10/100M

Bit rate

50Kb-8Mb

Browse

Web browse and setting

User login

6, at same time.

Block Camera (Sony FCB-EH6300)

Image sensor

1/2.8-type ‘Exmor’ CMOS

Signal system

HD: 1080p/29.97, 1080p/25, 1080i/59.94 (frame out 29.97 PsF), 1080i/50 (frame out: 25PsF) 720/59.94p, 720/50p, 720p/29.97, 720p/25 SD: NTSC, PAL (640x360)

Number of total pixels

Approx. 3.27 Megapixels

Lens

20x optical zoom, f=4.7 mm (wide) to 94.0 mm (tele), F1.6 to F3.5

Digital zoom

12x (240x with optical zoom)

Angle of view (H)

1080p/30 mode: 55.4° (wide end) to 2.9° (tele end)720p/60, 30 mode: 37.6° (wide end) to 1.95° (tele end)

Minimum working distance

10 mm (wide) to 1000 mm (tele) (Default 300mm)

Sync system

Internal

Minimum illumination

High sensitivity mode: 0.5 lx (ICR Off) 0.095 lx (ICR On) (F1.6, 50 IRE)Normal mode: 1.7 lx (ICR Off) 0.3 lx (ICR On) (F1.6, 50 IRE)

S/N ratio

More than 50 dB

Electronic shutter

1/1 to 1/10,000 s, 22 steps

White balance

Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapour Lamp (fix/Auto) One-push, Manual

Gain

Auto/Manual (-3 to +28 dB, +2 dB step/total 16 steps) Max. Gain Limit (+6dB to +28 dB, +2 dB step/total 12 steps)

AE control

Auto, Manual, Shutter Priority, Iris Priority, Bright, Spot AE, Slow AE (approx 5 minutes)

EV compensation

N/A

Focusing system

Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus compensation in ICR on.

Video output

HD Analogue: Component Y/Pb/Pr; Digital Y/Cb/Cr 4:2:2 via LVDS (signal format conforms to SMPTE296) SD VBS

Camera control interface

VISCA (CMOS 5 V level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, stop bit: 1bit

Parameter Description

Pan-tilt:

Address

0~255

Pan range

360°Continue

Tilt range

0°~90° Flip

Manual speed Pan

0.05~240°/Sec

Manual speed Tilt

0.05~180°/Sec

Preset speed

300°/Sec

Preset accuracy

±0.50°

Preset

255

Remote firmware updating and setup

to update firmware by RS485, to set ID by RS485

Cruise Tours

8 Programmable(Dwell time speed preset point)

Speed setup for cruise tour

Yes

Auto Scan

1 Programmable  (355° scan )

Time adjustment

to adjust Time by broadcasting

Integrate multi-protocol

Pelco_D/P, PEARMAIN or OEM protocol

Protocol Automatic identify

Pelco_D/P, PEARMAIN

Broadcasting address

Yes

anti-surge and anti-Lightning protection

Yes, Power side:4KV, Video and data side: 2KV

OSD menu operation

Yes

Supporting camera

Automatic identify(Sony, Hitachi ,etc.)

Camera menu operation

Yes

Camera character programming

20 character

Privacy masking

Yes

Ingress Protection IP66

Yes

Operating Temperature

–40℃~70℃

Humidity

0%~90% (Non condensing)

Heater operate

(-5)℃ on +5℃ off

Power

24VAC±25%,60Hz/50Hz

Consumption

IR off 15W  IR on 35W

communication

RS485 (+/-)

Connection

BNC cable

Weight

4.5kgs (without bracket)
