Brand:honeywell
model:HEN32304

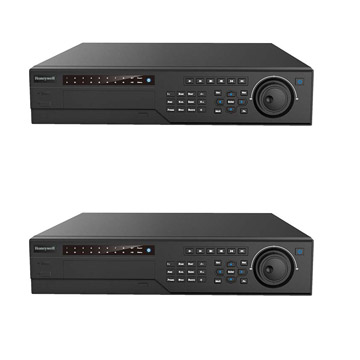

HEN32304 Honeywell Focus 4K Embedded NVRs
16-/32-/64-Channel 4K ENVRs
HEN16304/HEN32304/HEN64304
Introducing Honeywell’s Focus 4K Embedded NVRs, our newest
affordable, fully featured NVRs offering Ultra HD 4K video resolution.
Choose a 16-, 32-, or 64-channel NVR, with multiple hard drive
options plus the ability to expand to up to 64 TB of internal storage,
for an ideal and flexible solution to fit your surveillance situation.
Fully-featured NVRs
? High decoding capability for Ultra 4K HD viewing and recording
? View 4/8/16 channels simultaneously with synchronized real-time
playback on your monitor (depending on your model)
? Up to 12 MP (4K) resolution live view, preview and playback
? Up to 16 channels at 1080p, or 8 channels at 4 MP, or 4 channels at
8 MP H.265/H.264 decoding
? De-warp fisheye camera video in local and web user interface for 360 degree situational awareness
Easy to Use
? The Quick wizard and PoE support (for up to 16 channels) make setup fast and easy
? Quick physical installation with the help of a simple NVR design and
easy-to-understand quick installation guides
? Simple remote configuration and firmware updating through the
Honeywell Viewer web client and the Honeywell Config tool
Market Opportunities
The flexible storage options and high recording and networking
performance of the Focus 4K Embedded NVRs make these
NVRs perfect for a wide range of security applications.
Convenient, Flexible Storage Options
? Internal storage supports 8 HDDs expandable up to 64 TB (8 TB each)
? Store video clips and snapshots to external storage, such as the client’s PC, through the
Internet connection
? RAID 0/1/5/6/10 external storage compatibility supports a wide range of high
capacity storage options
? Store video clips and snapshots to external network storage servers, such as an FTP site
? Store video clips and snapshots to a USB memory device
Dynamic, Accessible Monitoring
? Monitor from anywhere using the mobile apps for both Apple® and Android? devices
(smartphones, tablet computers, and laptops)
? Protect the NVR's video and network setup with password-protected access
? Conceal up to 4 areas of a scene from viewing and recording
HEN16304 NVR, 16-Channel, H.265, 4K 12 MP, 8 SATA, 16 PoE, 480 fps, 0 TB, RAID 5&6
HEN32304 NVR, 32-Channel, H.265, 4K 12 MP, 8 SATA, 16 PoE, 960 fps, 0 TB, RAID 5&6
HEN64304 NVR, 64-Channel, H.265, 4K 12 MP, 8 SATA, 16 PoE, 1920 fps, 0 TB, RAID 5&6
RECOMMENDED CAMERAS
RUGGED 4K IR MINIDOME
IP CAMERAS
H4D8PR1
4K IR BULLET IP CAMERAS
HBD8PR1
4K IR BALL IP CAMERAS
HED8PR1
1080P IR PTZ IP CAMERAS
HDZP252DI
INDOOR 5 MP FISHEYE
IP CAMERAS
HFD5PR1
3-INCH INDOOR MINIDOME
IP CAMERAS
H3W2GR1; H3W2GR2; H3W4GR1
4-INCH RUGGED MINIDOME
IP CAMERAS
H4D3PRV2; H4W2PRV2; H4W4PRV2; H4D3PRV3; H4W4PRV3; H4W2GR1; H4W2GR2; H4W4GR1; H4D8GR1
INDOOR BOX IP CAMERAS
HCW2G; HCL2G; HCW4G; HCD8G
BULLET IP CAMERAS
HBD3PR2; HBW2PR2; HBW4PR2; HBW2PR1; HBW4PR1; HBL2GR1; HBW2GR1; HBW2GR3; HBW4GR1; HBD8GR1; HBD1PR1; HBD3PR1
BALL/MICRO DOME
IP CAMERAS
H2W2PRV3; H2W4PRV3; HEW2PRW1; HEW4PRW3; HEW2PR1; HEW4PR3; HEW2PR2; HEW4PR2; HED1PR3; HED3PR3
