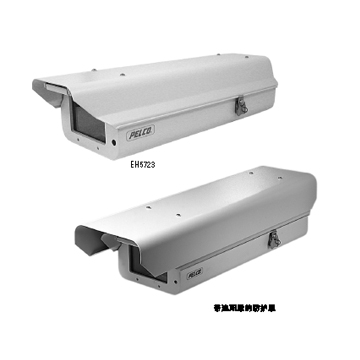

EH5700 Series Enclosure

OUTDOOR, LARGE
Product Features
? All-Aluminum Construction
? Gas-Spring-Assisted, Forward-Opening Lid
? Cable Entry Glands and Mounting Holes Located on Bottom of
Enclosure
? Link-Lock Latches for Security
? Designed for Indoor/Outdoor Applications
? For Use with Fixed Mount or Pan/Tilt
? Special Options Include 120 VAC Outlet, Preset Lens Wiring Harness,
and Window WiperMODELS
EH5723 ?
EH5723-1 ? ? ? 105 W
EH5723-2 ? ? ? 60 W
EH5723-3 ? ? ? 85 W
EH5729 ?
EH5729-1 ? ? ? 105 W
EH5729-2 ? ? ? 60 W
EH5729-3 ? ? ? 85 W

OPTIONAL ACCESSORIES
Blower Kit
BK57-1
Blower kit, 120 VAC, 15 W
BK57-2
Blower kit, 24 VAC, 10 W
BK57-3
Blower kit, 230 VAC, 15 W
Heater Kit
HK57-1
Heater kit, 120 VAC, 90 W
HK57-2
Heater kit, 24 VAC, 50 W
HK57-3
Heater kit, 230 VAC, 70 W
Sun Shroud
SS5723 Sun shroud for EH5723 Series enclosures
SS5729 Sun shroud for EH5729 Series enclosures
Window
WD57-1
Window defroster, 120 VAC, 30 W
Defroster
WD57-2
Window defroster, 24 VAC, 30 W
WD57-3
Window defroster, 230 VAC, 30 W
Window
WW5723-1
Window wiper, EH5723 Series,
Wiper
120 VAC, 15 W
WW5723-2
Window wiper, EH5723 Series,
24 VAC, 15 W
WW5723-3
Window wiper, EH5723 Series,
230 VAC, 15 W
WW5729-1
Window wiper, EH5729 Series,
120 VAC, 15 W
WW5729-2
Window wiper, EH5729 Series,
24 VAC, 15 W
WW5729-3
Window wiper, EH5729 Series,
230 VAC, 15 W
Other
O/I-PCB Accessory interface board; thermostatically
controls heater, blower, and defroster
operation (one per enclosure required)
O/I-LPP
Preset position lens wire harness
O/I-OUTLET
120 VAC electrical convenience outlet
TI57 Thermal insulation, EH5723/EH5729 Series
RECOMMENDED MOUNTS
Pedestal
MM22 Medium duty pedestal mount; maximum
load is 40 lb (18.14 kg)
PM2000, Pedestal mount; maximum load is
PM2010
125 lb (56.6 kg)
Wall
EM22 Medium duty wall mount; maximum load is
40 lb (18.14 kg)
WM2000
Wall mount; maximum load is 75 lb (33.97 kg)
Adapter
AH2000 Adjustable head
RECOMMENDED PAN/TILTS
PT570 Series Medium duty pan/tilt, 120 VAC or 24 VAC;
maximum load is 40 lb (18.14 kg)
PT1250 Series Heavy duty pan/tilt, 120 VAC or 230 VAC;
maximum load is 100 lb (45.4 kg)
