Brand:AXIS
Model:AXIS M1104

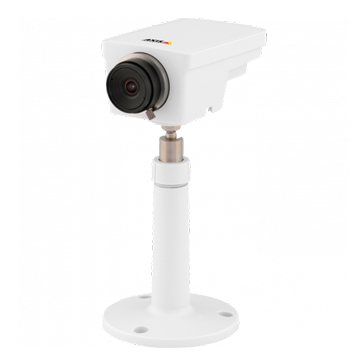

AXIS M1104 6.0MM 0367-009 HDTV camera with fixed, 6.0 mm, CS-mount lens. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 720p or 1MP resolution at 30 fps. Video motion detection and active tampering alarm. Power over Ethernet. Midspan not included.
DISCONTINUED PRODUCT.Recommended replacements:AXIS M1135
Technical specifications
Models: AXIS M1104 2.8 mm / AXIS M1104 6 mm / AXIS M1104 Barebone / AXIS M1104 2.8 mm Surveillance Kit
Camera
Image sensor CMOS
Image sensor size 1/4
Sensor size in megapixel 1.0
Lightfinder -
Wide dynamic range –
Min illumination/ light sensitivity (Color) * 1.00 / 0.90 lux
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 640x480
Max frames per second 30
Electronic image stabilization –
Lens
Focal length * 2.8 / 6 mm
Horizontal field of view * 80 / 37 °
Vertical field of view * 53 / 25 °
Lens mount CS
Replaceable lens
Yes
Compression
Zipstream –
H.264 Baseline
H.265 –
Motion JPEG
Yes
Audio
Audio Support –
Network
PoE Class 1
Wireless –
Security
Signed firmware –
Secure boot –
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot) –
Operating temperature -20 to 50 °C
Outdoor Ready –
Vandal rating –
IP rating –
Designed for repaint –
Sustainability –
Power
Power (max) –
Power (average) –
DC input voltage –
