Detail

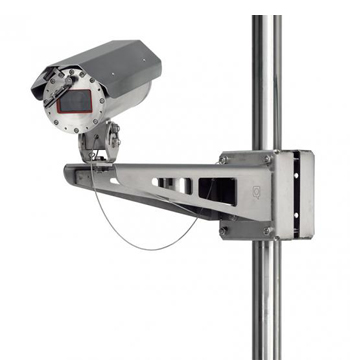

ExCam XF Q1785 Explosion-Protected Network Camera
Top-tuned for hazardous applications
Certified for ATEX, IECEx, EAC Ex, IA; Zones 1, 2, 21 and 22; Groups IIC and IIIC
Cost-efficient installation with PoE
2 MP, HDTV 1080p at up to 60 fps
-60 °C to 60 °C (-76 °F to 140 °F) operating temperature
Electronic image stabilization
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: ExCam XF Q1785
Camera
Image sensor CMOS
Image sensor size 1/2.8
Sensor size in megapixel 2.0
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.16 lux
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 1920x1080
Max frames per second 50/60
Electronic image stabilization
Yes
Lens
Focal length 4.3 - 137 mm
Optical zoom 32
Horizontal field of view 60 - 2.3 °
Vertical field of view 39 - 1.3 °
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Network
PoE Class 3
Security
Signed firmware
Yes
Secure boot –
TPM –
General
Remote focus –
Remote zoom
Yes
Local storage (memory card slot)
Yes
Outdoor Ready
Yes
IP rating IP68
Power
Power (max) 40.0 W
Power (average) –
DC input voltage 22-26 V
AC input voltage –
