Brand:AXIS
Model:AXIS M5055
Lens
Focal length | 2.2 - 11.0 mm |
Horizontal field of view | 71 - 14 ° |
Vertical field of view | 40-8 ° |

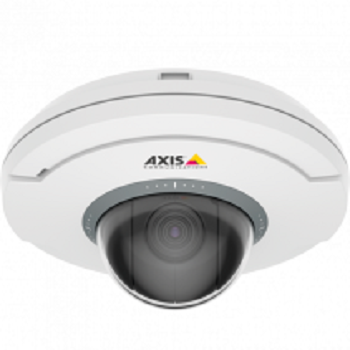

AXIS M5055 01081-001 PTZ Network Camera
Palm-sized PTZ camera in HDTV 1080p with 5x optical zoom
Pan, tilt, zoom with 5x optical zoom
HDTV 1080p
Autofocus and WDR
Built-in analytics
Zipstream
AXIS M5055 PTZ Network Camera is a discreet, palm-sized PTZ camera that fits in anywhere. Perfect for smaller installations, it offers an affordable way to see the big picture – and all the important details.
See it all – and see it clearly
AXIS M5055 gives you good, detailed video with 71° horizontal field of view. PTZ functionality – with 5x optical zoom and autofocus – lets you benefit from sweeping overviews and zoom in to get the details. Full HDTV 1080p resolution ensures great image usability.
Axis IP camera vieweing a barista in a coffe shop
Small size. Small price.
With an understated design and a diameter of just 130 x 63 mm (5.1 x 2.5 in), AXIS M5055 blends discreetly into any environment. It comes at a price point that’s nothing if not reasonable. And Axis Zipstream technology reduces storage and bandwidth by up to 50% without compromising image quality – for significant savings.
Built-in analytics
AXIS M5055 provides even more functionality and versatility thanks to these built-in analytics:
Scream detection — an event is triggered when the built-in microphone detects a scream in the camera’s proximity
Audio volume detection — an event is triggered via the Axis event system when the built-in microphone detects that a configurable volume threshold has been exceeded
Removed object detection — an even is triggered when a pre-selected object in the camera’s view is removed
Video motion detection 4 — an event is triggered when movement is detected by the PTZ camera in a predefined area of your choice
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: AXIS M5055
Camera
Image sensor CMOS
Image sensor size 1/4.85
Sensor size in megapixel 2.0
Lightfinder -
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 1.20 lux
Min illumination/ light sensitivity (B/W) –
General
Built-in IR –
OptimizedIR –
Local storage (memory card slot)
Yes
Operating temperature 0 to 45 °C
Outdoor Ready –
Vandal rating –
IP rating IP51
Designed for repaint
Yes
Analytics
Autotracking version –
Orientation aid –
Video
Max video resolution 1920x1080
Max frames per second 30
Day and Night functionality –
Electronic image stabilization –
Lens
Focal length 2.2 - 11.0 mm
Horizontal field of view 71 - 14 °
Vertical field of view 40-8 °
Pan, Tilt, Zoom
Pan range +/-179
Tilt range 90
Guard tour –
Optical zoom 5
Digital zoom 10
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support
Yes
Built-in microphone
Yes
System Integration
Audio detection
Yes
Active tampering –
Alarm inputs/outputs 0/0
Network
PoE Class 3
Security
Signed firmware –
Secure boot –
TPM –
