Brand:AXIS
Model:AXIS P5624-E Mk II 0931-009
Lens 4.3–98.9 mm, F1.6–F4.2
Horizontal field of view: 57.9°–2.9°
Vertical field of view: 33.9°–1.6°
Autofocus, auto-iris

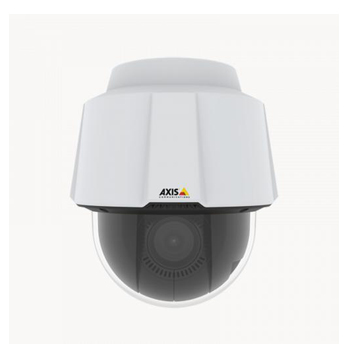

AXIS P5624-E Mk II 0931-009 PTZ Network Camera
DISCONTINUED PRODUCT.Recommended replacements: AXIS P5654-E
AXIS P5624-E Mk II PTZ Dome Network Camera
HDTV 720p PTZ with 23x zoom and focus recall
AXIS P5624-E Mk II is a cost-effective, outdoor-ready HDTV 720p camera with 23x optical zoom. It is ideal for video
surveillance of large indoor and outdoor areas. It features continuous 360° pan for fast camera repositioning and
continuous tracking of objects. The focus recall feature offers instant focus in predefined areas, while the day/night
functionality and WDR provide great image quality even in complex light conditions. Axis Zipstream technology significantly
reduces bandwidth and storage requirements. AXIS P5624-E Mk II also offers shock detection and Advanced
Gatekeeper.
> Continuous 360° pan
> Excellent light sensitivity
> HDTV 720p and 23x optical zoom
> Focus recall
> Axis Zipstream technology
Technical specifications
Models: AXIS P5624-E Mk II 50 Hz / AXIS P5624-E Mk II 60 Hz
Camera
Image sensor CMOS
Image sensor size 1/2.8
Sensor size in megapixel 1.0
Lightfinder -
Wide dynamic range Forensic Capture
Min illumination/ light sensitivity (Color) 0.20 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
General
Built-in IR –
OptimizedIR –
Local storage (memory card slot)
Yes
Operating temperature -30 to 55 °C
Outdoor Ready
Yes
Vandal rating IK10
IP rating IP66
Designed for repaint
Yes
Analytics
Autotracking version –
Orientation aid –
Video
Max video resolution 1280x720
Max frames per second * 50 / 60
Day and Night functionality
Yes
Electronic image stabilization –
Lens
Focal length 4.3 - 98.9 mm
Horizontal field of view 57.9 - 2.9 °
Vertical field of view 33.9 - 1.6 °
Pan, Tilt, Zoom
Pan range 360 endless
Tilt range +/- 90
Guard tour limited guard tour
Optical zoom 23
Digital zoom 12
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support –
Built-in microphone –
System Integration
Audio detection –
Active tampering –
Alarm inputs/outputs –
Network
PoE Class 4
Security
Signed firmware –
Secure boot –
TPM –
