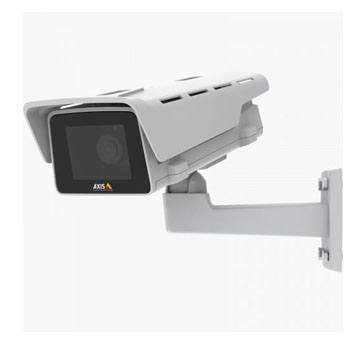

AXIS M1135-E Network Camera
Outdoor-ready 2 MP premium affordable surveillance
Compact and flexible design
Lightfinder and Forensic WDR
Audio input
Exchangeable CS mount lens
Zipstream supporting H.264 and H.265
Technical specifications
AXIS M1124-E
AXIS M1134
AXIS M1135
AXIS M1135-E
AXIS M1137
AXIS M1137-E
AXIS M1145-L
Models: AXIS M1135-E
Camera
Image sensor CMOS
Image sensor size 1/2.9
Sensor size in megapixel 2.0
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.10 lux
Min illumination/ light sensitivity (B/W) 0.02 lux
Video
Max video resolution 1920x1080
Max frames per second 30
Electronic image stabilization –
Lens
Focal length 3-10.5 mm
Horizontal field of view 90-33 °
Vertical field of view 49-19 °
Lens mount CS
Replaceable lens Yes
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Network
PoE Class 2
Wireless –
Security
Signed firmware Yes
Secure boot Yes
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature -25 to 50 °C
Outdoor Ready
Yes
Vandal rating IK10
IP rating IP66
Designed for repaint –
Sustainability PVC free
Power
Power (max) 6.5 W
Power (average) 3.8 W
DC input voltage 8-28 V
