Brand:AXIS
Model:AXIS P3925-R
Lens Focal length 2.8 mm
Horizontal field of view 110 °
Vertical field of view 62 °

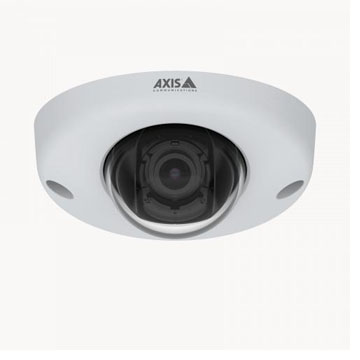

AXIS P3925-R Onboard Network Camera
Mobile surveillance comes with its own unique set of requirements and challenges: limited physical space, extreme shock and vibration, rapidly shifting light conditions, minimal storage space, and more. Which is why Axis onboard cameras are specifically engineered to live up to all of that and more.
Rough and ready – for rolling stock
Ruggedized AXIS P39 cameras are ideal for surveillance on board trains, trams, and metros. The cameras comply with the most stringent EN50155 standards for railway applications. So they offer every ounce of the reliability you expect from Axis, plus the “more, more, and more” you need for vehicles and rolling stock. Of course, these cameras are also perfect for buses, emergency vehicles, trucks and even industrial environments where they are exposed to a great deal of shock and vibration.
Small and discreet – for buses and emergency vehicles
If you’re looking to make the most of the small amount of space available on board buses and emergency vehicles, the modular AXIS F Series fits the bill. Because they consist of two detached parts that can be mounted apart from each other, you can fit them almost anywhere. They also provide the ultimate in discretion.
Tough light conditions? Not a problem
Advanced image-processing algorithms mean instantaneous adjustment to rapidly changing light as vehicles and rolling stock move across the landscape – particularly when they enter and exit tunnels. Traffic light mode, in AXIS P39 Series cameras, makes it possible to really distinguish between signal light colors. And the power of technologies like WDR and Lightfinder combat strong backlight and low light. Plus a wide selection of lenses and sensor units makes it possible to attain the right field of view under any circumstances.
Collections within Onboard cameras
AXIS F41 Main Unit from left angle
AXIS F Series - onboard cameras
Flexible modular cameras for onboard applications
Products within Onboard cameras
P3935 lr, viewed from front.
AXIS P39 Network Camera Series
High-performance domes for onboard surveillance
White AXIS P3925-LRE viewed from left angle
AXIS P3925-LRE Network Camera
Onboard camera – for exterior use in any light
Vandal-resistant, metal casing
Complies with EN50155, EN45545, and NFPA 130
Lightfinder and Forensic WDR
Electronic image stabilization
Enhanced security features
Technical specifications
Models: AXIS P3925-R M12 / AXIS P3925-R
Camera
Image sensor CMOS
Image sensor size 1/2.9
Sensor size in megapixel 2.0
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.06 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Video
Max video resolution 1920x1080
Max frames per second 25/30
Day and Night functionality
Yes
Electronic image stabilization
Yes
Lens
Focal length 2.8 mm
Horizontal field of view 110 °
Vertical field of view 62 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265
Yes
Motion JPEG
Yes
Audio
Audio Support –
Built-in microphone –
Network
PoE Class 2
Wireless –
Security
Signed firmware
Yes
Secure boot
Yes
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature -40 to 55 °C
Outdoor Ready –
Vandal rating IK10
IP rating IP66, IP67
Designed for repaint –
Sustainability PVC free
Mounts
AXIS T94D01S Mount Bracket Flat White, 10pcs
White plastic adapter for mounting AXIS P3904-R and AXIS P3905-R on flat surfaces.
AXIS T94D02S Mount Bracket Curved White, 10pcs
Housings & cabinets
AXIS TP3806 Dome Cover Black
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS P3925-R M12 AR, AU, BR, CN, EU, JP, KR, UK, US 01933-001
AXIS P3925-R M12, 10 pcs AR, AU, BR, CN, EU, JP, KR, UK, US 01933-021
AXIS P3925-R M12 IN 01933-113
AXIS P3925-R AR, AU, BR, CN, EU, JP, KR, UK, US 01920-001
AXIS P3925-R, 10 pcs AR, AU, BR, CN, EU, JP, KR, UK, US 01920-021
AXIS P3925-R IN 01920-113
