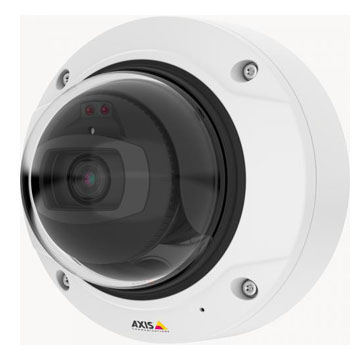

AXIS Q3517-LV Network Camera
Fixed dome for solid performance in 5 MP
5 MP resolution at full framerate
Forensic WDR, Lightfinder and OptimizedIR
Axis Zipstream technology
EIS, IK10 vandal resistance, IP52 water and dust protection
Power with redundancy and configurable I/O ports
Technical specifications
Models: AXIS Q3517-LV
Camera
Image sensor CMOS
Image sensor size 1/1.8
Sensor size in megapixel 5.0
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.12 lux
Min illumination/ light sensitivity (B/W) 0.02 lux
Video
Max video resolution 3072x1728
Max frames per second 50/60
Day and Night functionality
Yes
Electronic image stabilization
Yes
Lens
Focal length 4.3 - 8.6 mm
Horizontal field of view 96 - 50 °
Vertical field of view 53-29 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support
Yes
Built-in microphone –
Network
PoE Class 3
Wireless –
Security
Signed firmware
Yes
Secure boot –
General
Remote focus
Yes
Remote zoom
Yes
Built-in IR
Yes
Local storage (memory card slot)
Yes
Operating temperature -10 to 50 °C
Outdoor Ready –
Vandal rating IK10
IP rating –
Designed for repaint
Yes
Sustainability PVC free
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q3517-LV AR, AU, BR, CN, EU, JP, KR, UK, US 01021-001
AXIS Q3517-LV IN 01021-113
