Brand:AXIS
Model:AXIS Q3517-SLVE 01237-001
Lens Focal length 4.3 - 8.6 mm
Horizontal field of view 96 - 50 °
Vertical field of view 53-29 °

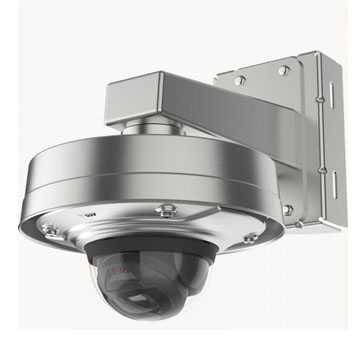

AXIS Q3517-SLVE Network Camera
Stainless steel for solid performance in 5 MP
Marine-grade stainless steel casing
5 MP resolution at full framerate
Forensic WDR, Lightfinder and OptimizedIR
Axis Zipstream technology
EIS and vandal resistance with IK10+ rating
Technical specifications
Models: AXIS Q3517-SLVE
Camera
Image sensor CMOS
Image sensor size 1/1.8
Sensor size in megapixel 5.0
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.12 lux
Min illumination/ light sensitivity (B/W) 0.02 lux
Video
Max video resolution 3072x1728
Max frames per second 50/60
Day and Night functionality
Yes
Electronic image stabilization
Yes
Lens
Focal length 4.3 - 8.6 mm
Horizontal field of view 96 - 50 °
Vertical field of view 53-29 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support
Yes
Built-in microphone –
Network
PoE Class 3
Wireless –
Security
Signed firmware
Yes
Secure boot –
General
Remote focus
Yes
Remote zoom
Yes
Built-in IR
Yes
Local storage (memory card slot)
Yes
Operating temperature -50 to 55 °C
Outdoor Ready
Yes
Vandal rating IK10+
IP rating IP66, IP67, IP6K9K
Designed for repaint
Yes
Sustainability PVC free
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q3517-SLVE AR, AU, BR, CN, EU, JP, KR, UK, US 01237-001
AXIS Q3517-SLVE IN 01237-113
Cables & connectors
AXIS Multicable B I/O Audio Power, 2.5 m
AXIS T8129 PoE Extender
The smart solution for covering distances
AXIS T8129-E Outdoor PoE Extender
Mounts
AXIS T91F61 Wall Mount
Made in marine grade stainless steel
Requires additional accessory
AXIS T91F67 Pole Mount
Made of marine grade-stainless steel
AXIS T94U01D Pendant Kit
Made in marine grade stainless steel
AXIS T94U02D Pendant Kit
Made in marine grade stainless steel
