Detail

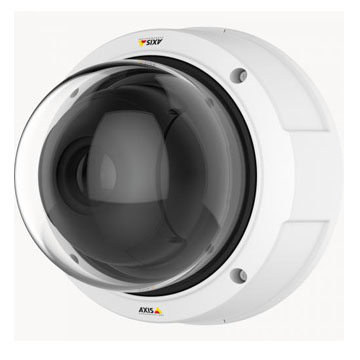

AXIS Q3617-VE Network Camera
Outstanding image quality with easy installation and remote adjustment
Exceptional video quality with 1/1.8” sensor
Lightfinder and WDR – Forensic Capture
Up to 6 MP in 20 fps without WDR or 4 MP in 30 fps with WDR
Remote PTRZ capability for efficient installation and readjustment
Zipstream – saves bandwidth without sacrificing quality
Technical specifications
Models: AXIS Q3617-VE
Camera
Image sensor CMOS
Image sensor size 1/1.8
Sensor size in megapixel 6.0
Lightfinder Lightfinder
Wide dynamic range Forensic Capture
Min illumination/ light sensitivity (Color) 0.15 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Video
Max video resolution 3072x2048
Max frames per second 50/60
Day and Night functionality
Yes
Electronic image stabilization
Yes
Lens
Focal length 4.1 - 9 mm
Horizontal field of view 101 - 46 °
Vertical field of view 66-30 °
Pan, Tilt, Zoom
Remote PTRZ
Yes
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support –
Built-in microphone –
Network
PoE Class 3
Wireless –
Security
Signed firmware
Yes
Secure boot –
General
Remote focus
Yes
Remote zoom
Yes
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature -40 to 60 °C
Outdoor Ready
Yes
Vandal rating IK10
IP rating IP66, IP67, IP6K9K
Designed for repaint
Yes
Sustainability PVC free
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q3617-VE CN 0744-009
AXIS Q3617-VE AR, AU, BR, EU, JP, KR, UK, US 0744-001
