AXIS P1254 0924-009 Network Camera
Brand:AXIS
Model:AXIS P1254 0924-009
Lens Focal length 2.1 mm
Varifocal lens No
Aperture 2.2
Horizontal field of view 102 °
Vertical field of view 56 °
Detail

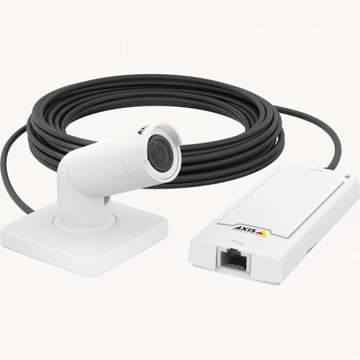

AXIS P1254 Network Camera
Cost-effective mini bullet camera
Easy and discreet installation
Sensor unit rotates and tilts to the desired viewing direction
HDTV 720p and 102° horizontal field of view
Axis Zipstream technology
Built-in microSD card slot
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: AXIS P1254
Camera
Image sensor CMOS
Wide dynamic range Dynamic Contrast
Min illumination/ light sensitivity (Color) 0.4 lux
Min illumination/ light sensitivity (B/W) –
Thermal sensitivity (NETD) –
Thermal sensor resolution –
Video
Max video resolution 1280x720
Max frames per second 25/30
Day and Night functionality –
Electronic image stabilization –
Multiple color palettes –
Lens
Focal length 2.1 mm
Varifocal lens No
Aperture 2.2
Horizontal field of view 102 °
Vertical field of view 56 °
Lens mount M12
Replaceable lens –
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support –
Two-way audio –
System integration
Audio detection –
Active tampering
Yes
Alarm inputs/outputs –
Serial connectors –
AXIS Camera Application Platform
Yes
Digital I/O –
Network
Power over Ethernet
Yes
PoE Class 2
Security
HTTPS encryption
Yes
IEEE 802.1X
Yes
General
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature -20 to 50 °C
Outdoor Ready –
Vandal rating –
IP rating –
Power
Power (max) –
Power (average) –
DC input voltage –
NAME AXIS REGION PART NUMBER
AXIS P1254 AR, AU, BR, EU, JP, KR, UK, US 0924-001
AXIS P1254 CN 0924-009
AXIS P1254 IN 0924-113
