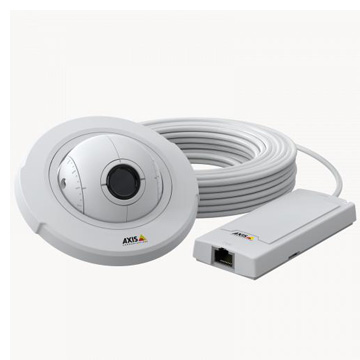

AXIS P1290-E Thermal Network Camera
Discreet, budget-friendly and outdoor ready thermal detection
Reliable and budget-friendly detection
Thermal technology for low rate of false alarm
Functional and discreet design
Outdoor ready
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: AXIS P1290-E
Camera
Image sensor Uncooled microbolometer
Wide dynamic range –
Min illumination/ light sensitivity (Color) –
Min illumination/ light sensitivity (B/W) –
Thermal sensitivity (NETD) <100 mK
Thermal sensor resolution 208x156
Video
Max video resolution 640x480
Max frames per second 8.3
Day and Night functionality –
Electronic image stabilization –
Multiple color palettes
Yes
Lens
Focal length 4 mm
Varifocal lens No
Aperture 1.2
Horizontal field of view 35.4 °
Vertical field of view 28 °
Lens mount –
Replaceable lens –
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support –
Two-way audio –
System integration
Audio detection –
Active tampering –
Alarm inputs/outputs –
Serial connectors –
AXIS Camera Application Platform
Yes
Digital I/O –
Network
Power over Ethernet
Yes
PoE Class 2
Security
HTTPS encryption
Yes
IEEE 802.1X
Yes
General
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature -30 to 55 °C
Outdoor Ready
Yes
Vandal rating –
IP rating IP66, IP67
Power
Power (max) –
Power (average) –
DC input voltage –
NAME AXIS REGION PART NUMBER
AXIS P1290-E AR, AU, BR, CN, EU, JP, KR, UK, US 01168-001
