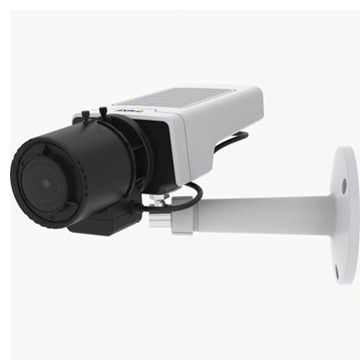

AXIS M1137 Network Camera
5 MP premium affordable surveillance
Compact and flexible design
Lightfinder and Forensic WDR
Built-in microphone for audio recording
Exchangeable CS mount lens
Zipstream supporting H.264 and H.265
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: AXIS M1137 / AXIS M1137 Barebone
Camera
Image sensor CMOS
Image sensor size 1/2.7
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.17 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Video
Max video resolution 2592x1944
Max frames per second 30
Electronic image stabilization –
Lens
Focal length 2.8-13 mm
Horizontal field of view 112-24 °
Vertical field of view 82-19 °
Lens mount CS
Replaceable lens
Yes
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265
Yes
Motion JPEG
Yes
Audio
Audio Support
Yes
Network
PoE Class 3
Wireless –
Security
Signed firmware
Yes
Secure boot
Yes
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature -20 to 50 °C
Outdoor Ready –
Vandal rating –
IP rating –
Designed for repaint –
Sustainability PVC free
Power
Power (max) 6.6 W
Power (average) 4.4 W
DC input voltage 8-28 V
Microphones
AXIS T8353A Microphone 3.5 mm
AXIS TU1001-V Microphone
AXIS TU1001-VE Microphone
NAME AXIS REGION PART NUMBER
AXIS M1137 Barebone AR, AU, BR, CN, EU, JP, KR, UK, US 01769-041
AXIS M1137 AR, AU, BR, CN, EU, JP, KR, UK, US 01769-001
AXIS M1137 IN 01769-113
