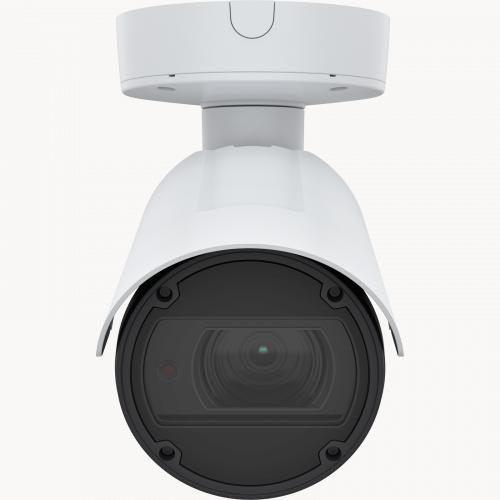

AXIS Q1798-LE 01702-001 Network Camera
Brand:AXIS
Model:AXIS Q1798-LE 01702-001
Lens Focal length 12 - 48 mm
Optical zoom 4
Horizontal field of view 90 - 21 °
Vertical field of view 49 -12 °
Detail
AXIS Q1798-LE Network Camera
4K without compromise
4K / 10 MP resolutions
Ultra-high light-sensitive 4/3" sensor
12 – 48 mm Canon lens
Lightfinder 2.0
Zipstream with support for H.264/H.265
AXIS Q1798-LE AR, AU, BR, CN, EU, JP, KR, UK, US 01702-001
AXIS Q1798-LE IN 01702-113
AXIS Long range PoE Extender kit
AXIS T8129 PoE Extender
AXIS T8129-E Outdoor PoE Extender
AXIS Surveillance Card 128 GB
AXIS Surveillance Card 256 GB
AXIS Surveillance Card 64 GB
AXIS T98A17-VE Surveillance Cabinet
AXIS T8331-E PIR Motion Detector
AXIS T8604 Media Converter Switch
AXIS T8606 Media Converter Switch 24 V DC
AXIS T8640 PoE+ over Coax Adapter Kit
AXIS T8645 PoE+ Over Coax Compact Kit
AXIS T8646 PoE+ over Coax Blade Kit
AXIS T8648 PoE+ Over Coax Blade Compact Kit
AXIS T8353A Microphone 3.5 mm
AXIS T91B47 Pole Mount
AXIS T94G01P Conduit Back Box
AXIS T94P01B Corner Bracket
AXIS T94R01B Corner Bracket
AXIS T94S01P Conduit Back Box
AXIS T94V01C Dual Camera Mount
AXIS T8061 Ethernet Surge Protector
AXIS T8504-E Outdoor PoE Switch
AXIS T8516 PoE+ Network Switch
AXIS T8524 PoE+ Network Switch
AXIS Bird Control Spike
AXIS T8415 Wireless Installation Tool
Technical specifications
Models: AXIS Q1798-LE
Camera
Image sensor CMOS
Image sensor size 4/3
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.03 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Max video resolution 3712x2784
Max frames per second 25/30
Electronic image stabilization Yes
Lens Focal length 12 - 48 mm
Optical zoom 4
Horizontal field of view 90 - 21 °
Vertical field of view 49 -12 °
Compression
Zipstream Yes
H.264 Baseline, High, Main H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Network
PoE Class 4
Security
Signed firmware Yes
Secure boot Yes
General
Remote focus –
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66, IP67
Designed for repaint Yes
Sustainability PVC free
Power
Power (max) 23.2 W
Power (average) 12.9 W
