Brand:huawei holosens
model:C215D-10-IU
lens:2.8–12 mm

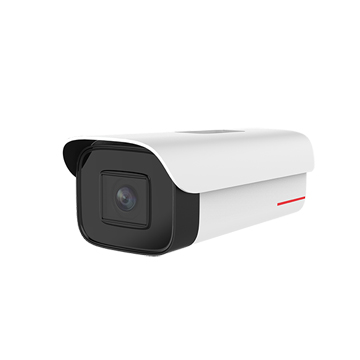

C215D-10-IU 1T 5MP IR AI Bullet CameraC215D-10-IU 1T 5MP IR AI Bullet Camera
1 TOPS computing power
Supports heat map, behavior analysis, and face and body detection
1/2.7" CMOS sensor
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
CPU Hi3516D V300
Computing power 1 TOPS
Memory DDR3 0.5 GB
Flash type SPI NAND Flash 256.0 MB
Max resolution 5-megapixel: 2560 (H) x 1920 (V)
Sensor size 1/2.7"
Min illumination Color: 0.005 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0025 lux (F1.2, AGC ON, 1/30s shutter speed) or 0 lux (infrared illuminator enabled)
Focal length 2.8–12 mm
Angle of view Horizontal: 30.6° (T) to 94° (W); vertical: 24° (T) to 70° (W)
IR range 50 m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map Supported
Behavior analysis Fast movement,Tripwire crossing,Intrusion,Area entry or exit,Loitering
Face Face detection
Person Person detection
Audio port Supported
RS-485 port Supported
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Power type 12 V DC and PoE (IEEE 802.3at)
Power consumption Maximum: 16 W; typical: 5 W
Operating temperature –30°C to +60°C (illuminator disabled) –30°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
IP rating IP67
Power type 12 V DC and PoE (IEEE 802.3at)
Power consumption Maximum: 16 W; typical: 5 W
Operating temperature –30°C to +60°C (illuminator disabled) –30°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
Surge protection 2 kV
IP rating IP67
Net weight 0.54 kg
Gross weight 0.94 kg
Device dimensions 210 mm x 108 mm x 91 mm
Package dimensions 117 mm x 296 mm x 141 mm
