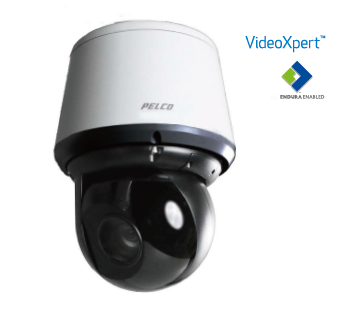

P2230L-ESR Pelco Pro IR Series IP PTZ Outdoor Camera 30X

Brand:Pelco

Model:P2230L-ESR

Focal length 4.5mm(wide)-135mm(tele)

Detail
P2230L-ESR Pelco Pro IR Series IP PTZ Outdoor Camera 30X
Product Features
? 850 nm IR Illumination to 150 m
? H.265, H.264, and MJPEG Video Encoding
? Tilt Range +15° to –90° Degrees
? Low Light Down to 0.1 lux
? IR Illumination with Proportional Brightness Based Upon Zoom
? Up to 120 dB True Wide Dynamic Range (WDR)
? Sabotage and Simple Motion Detection
? Pelco’s Smart Compression Technology
? Up to Full HD 1080p
? Up to 60 Images per Second (ips)
? Power Over Ethernet (802.3bt), 24 VAC, 48 VDC
? Electronic Image Stabilizer (EIS)
? Up to 2 TB Edge Storage with micro SDHC/SDXC Card
? 3-Year Warranty and Support
CAMERA/OPTICS
Specification Value
Sensor Type 1/2.8-inch CMOS Sensor
Optical Zoom 30X
Digital Zoom 12X
Maximum Resolution 1920 x 1080
Lens f/1.6 ~ f/4.4, focal length 4.5 mm (wide) ~ 135 mm (tele)
Angle of View
Horizontal 59.8° (wide) ~ 2.34° (tele)
Vertical 40.5° (wide) ~ 1.48° (tele)
Diagonal 67.8° (wide) ~ 2.77° (tele)
Aspect Ratio 16:9
Light Sensitivity
Color (33 ms) 0.1 lux
Color (125 ms) 0.025 lux
Mono (33 ms) 0.05 lux
Mono (125 ms) 0.01 lux
Mono with IR 0.0 lux
Note: Sensitivity in lux for 90% reflectance, f/1.6 (wide angle),
45 dB gain at 30 IRE (30% of signal level)
Day/Night Capabilities Yes
Shutter Range 1/4 ~ 1/30,000 sec
Signal-to-Noise Ratio >50 dB
IR Cut Filter Yes
True Wide Dynamic Range Up to 120 dB Max; 100 dB per IEC62676
Iris Control Auto Iris with Manual Override
Backlight Compensation Yes
Automatic Gain Control Yes
Active Noise Filtering 3D Noise Filtering
Digital Image Stabilization (DIS) Yes
Scanning Progressive Scanning System
GENERAL
Construction Aluminum
Cable Entry (Back Box)
Pendant Through 1.5-inch NPT pendant mount
Weight (Approximate) Unit Shipping
Environmental Pendant 5.2 kg (11.5 lb) 6.2 kg (13.7 lb)
Effective Projected Area (EPA)* 63.5 square inches (without mount),
109.8 square inches (with IWM Series mount)
*0.8 drag coefficient assumed. Air temperature and wind velocity
impact drag coefficient so if a more accurate EPA is required, then
the drag coefficient must be determined experimentally.
Clock Real time clock
IR Wavelength 850 nm
IR Range 150 m
SYSTEM MODEL NUMBERS
P2230L-ESR 2 MPx 30x Light Gray Spectra Pro IR Environmental Pendant
RECOMMENDED MOUNTS
IWM-SR, IWM24-SR Wall mount, with or without integral 24 VAC, 100 VA
transformer; can be adapted for corner, parapet, or
pole application
WMVE-SR Environmental wall mount; can also be mounted
using a pole
PP350/PP351 Spectra dome parapet; wall/rooftop mount
Note: For ease of installation, the Spectra Pro IR Series has a top
cover that is hinged. This way, after installation on a mount, while
the camera weight is hanging on a mount, wiring connections can be
made.
POWER SUPPLIES
WCS1-4 Model (WCS Series) Single 24 VAC camera power supply, indoor
ECPS-48VDC-5A 48 VDC indoor power supply
POE90U1BT-EUK 90 W HPOE 802.3BT single port injector EU
and UK power cord included
POE90U1BT-US 90 W HPOE 802.3BT single port injector US
power cord included
POE90U1BT 90 W HPOE 802.3BT single port injector
power cord not included
