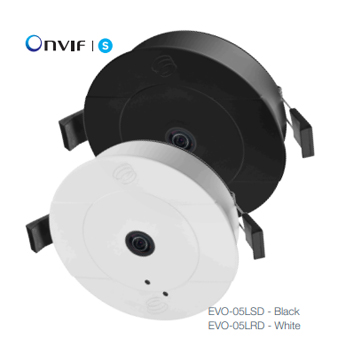

EVO-05LSD EVO-05LRD Pelco Evolution 05 Mini 360 Recessed Camera
5 MP sensor and no moving parts
? Constant 360° surveillance with no blind spots
? No moving parts, no maintenance and silent operation
? Up to 30 fps video stream at 1 MP and ? MP
? 0.2 lux minimum illumination and electronic WDR
? PoE powered
? 3-years warranty
Advanced features
? microSD card slot for local event recording
? Configurable privacy regions
? Polygonal Video Motion Detection regions
A truly discreet installation
? Simple and fast installation from below the ceiling line
? Ultra low profile, blends into the installation environment
? UL2043 rated for installation in air handling / plenum spaces
? Spray-paint to match your environment
? 108 mm (4.25 in.) drilling hole
? Fits up to 25 mm (1 in.) panel thickness
Extensive VMS/NVR platform integration
with Oncam SDK
? Market leading Oncam 3D dewarping software
? Full live and retrospective dewarping available
? Camera features are accessible through VMS platforms
? Simultaneous multiple video streams
? 10x digital zoom capability through client-side dewarping
? H.264 / MJPEG streaming with multiple quality levels
? Optimizes bandwidth and storage utilization
? Intuitive web-based interface for viewing and configuration
? Supported by major VMS / NVR systems including
VideoXpert (version 1.6 or later) and
Digital Sentry (version 7.8.90 or later)
? ONVIF profile S conformant
General
Lens Field of View 180o Horizontal, 168o Vertical
Image Sensor 2592 H x 1944 V, 5 MP,
1/2.5-inch Sony CMOS Sensor
Lens 185°/ F2.0
Minimum Illumination 0.2 lux = 50 IRE F/2.0 (6500 K)
Frame Rate 30 fps for 1 MP and ? MP resolution
15 fps for 2 MP resolution
10 fps for 4 MP full resolution
Video Motion Detection 8 configurable regions
Security Configurable password protection
Advanced Event Management Triggered by motion, HTTP event, result configurable,
FTP/SMTP upload and local recording
Networking TCP/IP, HTTP, DHCP, DNS, NTP, FTP, SMTP, RTSP and uPNP
Privacy Regions 10 configurable privacy regions
microSD Card Built-in microSD card slot. Supports cards up to 128 GB capacity. Speed class 10 or higher required
White Balance Range Auto White Balance (Range = approximately 2500 K~8000 K)
Video
Video Stream 1 & 2 Codec’s H.264 High, Level 5 / MJPEG (both streams configurable)
Video Stream 1 & 2 Compression Level Multi-levels of compression adjustment
Video Stream 1 & 2 Pixel Resolution Fisheyes at: ? MP (528 x 480), 1 MP (1056 x 960), 2 MP (1488 x 1360), 4 MP (2144 x 1944)
Video Stream 3 Codec MJPEG
Video Stream 3 Multi-levels of compression and frame rate adjustment (15 fps max)
Video Stream 3 Pixel Resolution Fisheye at: ? MP (528 x 480)
Image Control Settings include brightness / contrast / saturation / exposure compensation,
compression quality, wall / ceiling / table mount
Image Enhancement Electronic WDR 60 dB
PTZ Functionality 10x zoom with Oncam 3D client-side dewarping software
VMS / NVR supported Supported by major VMS / NVR systems including
VideoXpert (version 1.6 or later) and Digital Sentry (version 7.8.90 or later)
Web Browser Compatibility Internet Explorer 9, Edge 25, Firefox 23 and Chrome 29 or above. Plug-in required for full functionality
Number of Unicast Users Supported Up to 20 simultaneous users depending on the resolutions settings
Bit Rate Control Options include Variable Bit Rate Control, Constant Bit Rate Control and Constant Quality Control
Electrical
Connection Flying lead - RJ45 plug
Network Cable Type CAT5 or better for 100Base-TX
Power Input Power over Ethernet (PoE), IEEE standard 802.3af
Power Consumption (maximum) 4.13W
Mechanical
Camera Mount Recessed mount
Weight 0.30 kg (.66 lbs)
Dimensions (Diameter x Depth) 120 x 31 mm (4.7 x 1.2 in.)
Housing Material Polymer
Environmental
Operating Temperature Range 0 to +40° C (-32 to +104° F)
Operating Humidity Up to 98% non-condensing
Ingress Protection IP40
Certifications
Approvals IEEE802.3af, CE, AS/NZS CISPR 22:2009+A1:2010, CISPR 24:2010 (Class A),
FCC, ICES-003, KCC, CU, RCM, SASO
UL 60950-1(ed.2) & CAN/CSA C22.2 No. 60950-1-07, UL2043, RoHS, REACH
