Brand:AXIS
Model:AXIS Q1656
Lens:3.9-10 mm

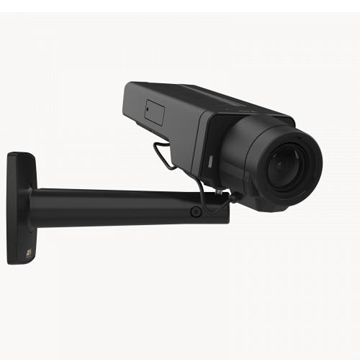

AXIS Q1656 02164-001 Box Camera
Outstanding performance in 4 MP
With 4 MP resolution at up to 60 fps, a 1/1.8” sensor, and Lightfinder 2.0, AXIS Q1656 delivers exceptional video quality
even in poor light conditions. Based on the latest Axis system-on-chip (SoC), it offers support for advanced features
and powerful applications based on deep learning on the edge. And AXIS Object Analytics offers highly nuanced object classification. This high-performance box camera includes premium Q-line functionality and support for PoE and
redundant DC power. Furthermore, built-in cybersecurity features, such as Axis Edge Vault, signed firmware and secure
boot, and FIPS-certified TPM, prevent unauthorized access and safeguard your system.
> Exceptional images with 1/1.8” sensor
> Support for analytics with deep learning
> Built-in cybersecurity features
> Premium Axis Q-line camera functionality
> Remote zoom and focus
Technical specifications
Models: AXIS Q1656
Camera
Image sensor CMOS
Image sensor size 1/1.8
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.05 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Video
Max video resolution 2688x1512
Max frames per second 50/60
Electronic image stabilization Yes
Lens Focal length 3.9-10 mm
Horizontal field of view 120-47 °
Vertical field of view 63-27 °
Lens mount CS
Replaceable lens Yes
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Network
PoE Class 3
Wireless –
Security
Signed firmware Yes
Secure boot Yes
General
Remote focus Yes
Remote zoom Yes
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature -20 to 55 °C
Outdoor Ready –
Vandal rating –
IP rating –
Designed for repaint –
Sustainability BFR/CFR free, PVC free
Power
Power (max) 7.7 W
Power (average) 4.6 W
DC input voltage 10-28 V
