Extended possibilities
Brand:AXIS
Model:AXIS M4308-PLE
Focal length 1.3 mm
Horizontal field of view 183 °
Vertical field of view 183 °
Pan, Tilt, Zoom

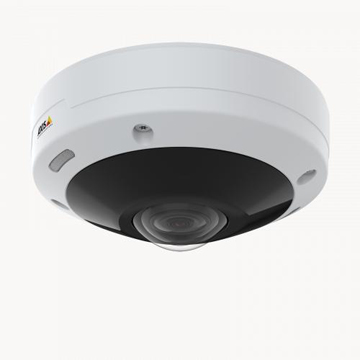

AXIS M4308-PLE 02100-001 Panoramic Camera
12 MP outdoor-ready dome with audio capture
12 MP sensor with 360° overview
Stereographic lens and Sharpdome 360
Lightfinder, Forensic WDR, OptimizedIR
Support for analytics with deep learning
4 microphones with voice enhancer
Technical specifications
Models: AXIS M4308-PLE
Camera
Image sensor CMOS
Image sensor size 1/1.7
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.19 lux
Min illumination/ light sensitivity (B/W) 0.04 lux
Video
Max video resolution 2880x2880
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Focal length 1.3 mm
Horizontal field of view 183 °
Vertical field of view 183 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Built-in microphone Yes
Network
PoE Class 4
Wireless –
Security
Signed firmware Yes
Secure boot Yes
General
Remote focus –
Remote zoom –
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready Yes
Vandal rating IK10 (IR window IK09)
IP rating IP66
Designed for repaint –
Sustainability PVC free
This discreet, outdoor-ready mini dome offers outstanding images and complete 360° panoramic overview with audio capture. A deep learning processing unit (DLPU) allows you to benefit from analytics based on deep learning on the edge.
AXIS M4308-PLE offers great possibilities to add value to your camera and extend the functionality of your surveillance system. With a DLPU, this mini dome enables unique opportunities to take advantage of analytics based on deep learning on the edge. It comes with AXIS Object Analytics allowing you to detect and classify humans and vehicles for reliable detection with fewer false alarms. And, with forensic search functionality, it eliminates the need to scroll through endless hours of video surveillance and you can search through hours of video in seconds.
Featuring a stereographic lens, AXIS M4308-PLE ensures a higher resolution around the outer portion of the view so objects located in the camera’s peripheral view can be captured more clearly. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. With a 12 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Featuring four built-in microphones with voice enhancer it offers high-quality audio capture and great noise suppression. And, with complete 360° overview you’ll be sure to record everything with no blind spots.
Based on a powerful Axis chipset, AXIS M4308-PLE features Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis devices on your network. It’s delivered factory-focused for ease of installation. And, with digital roll functionality you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. The discreet, flat design blends seamlessly into any environment. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.
