品牌:鳳凰Phenix
型號:23FA0824-10MP

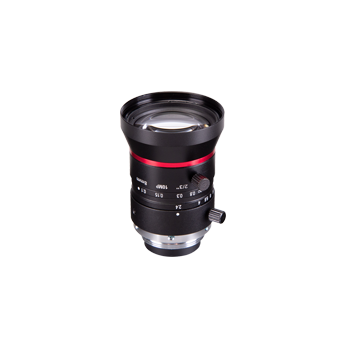

23FA0824-10MP 鳳凰Phenix 2/3" 10MP工業鏡頭
鏡頭特點:
1. 2.4um小像元。2. F1.8大光圈設計。3.超低光學畸變。4.小型化結構。
型號 Model |
23FA0824-10MP | 23FA1220-10MP |
23FA1618-10MP |
|
焦距 Focal Length |
8mm | 12mm | 16mm | |
像面尺寸(φ) Image Size |
φ11 | φ11 | φ11 | |
像素尺寸(μm) Pixel Size |
2.4μm | 2.4μm | 2.4μm | |
光圈范圍(F數) F-Number |
F2.4-16 | F2.0-16 | F1.8-16 | |
工作距離 Working Distance |
100mm-∞ | 100mm-∞ | 100mm-∞ | |
控制 Control |
光圈 Iris | 手動 Manual | 手動 Manual | 手動 Manual |
聚焦 Focus | 手動 Manual | 手動 Manual | 手動 Manual | |
最近物距視場范圍 Minimum Object Distance FOV |
-65.82 x -49.37 | -39.72 x -29.79 | -29.40 x -22.05 | |
視場角(°) Angle of View |
2/3" | 56.90 x 44.24 x 68.26 | 38.26 x 29.16 x 48.00 | 28.26 x 21.38 x 36.78 |
1/1.8" | 49.38 x 34.08 x 57.86 | 32.50 x 22.00 x 39.60 | 23.88 x 16.04 x 30.06 | |
1/2" |
43.56 x 33.36 x 53.10 | 28.38 x 21.48 x 35.98 | 20.78 x 15.66 x 27.24 | |
分辨率 Resolution |
10MP | 10MP | 10MP | |
TV畸變(最近物距至無窮遠最大畸變值) Max TV Distortion |
0.73 | 0.19 | 0.13 | |
基準工作距離TV畸變(200mm-400mm)% Optimal TV Distortion |
0.45 | 0.17 | 0.09 | |
接口 Mount |
C | C | C | |
濾鏡尺寸
Filter Size |
M37*0.5 | M28*0.5 | M27*0.5 | |
鏡頭尺寸 Dimension |
φ38*56.2 | φ34*56.4 | φ32*53.2 | |
重量 Weight |
102.4g | 104.3g | 89.8g | |
溫度范圍(°) Operating Temperature |
-10~+50℃ | -10~+50℃ | -10~+50℃ |
