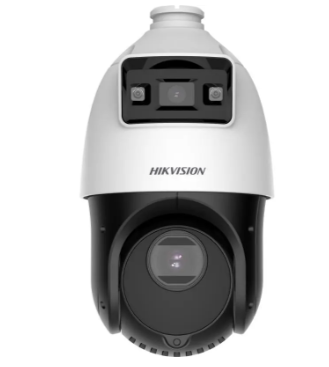

DS-2SE4C225MWG-E(12F0)TandemVu 4-inch 2 MP 25X Colorful & IR Network Speed Dome
Captures a large area and great details at the same time
High quality imaging with 2 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
Secures an expansive area with 25× optical zoom and 16× digital zoom
Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
Expansive night view with up to 100 m IR distance & 30 m white light
Supports 12V DC & PoE+
Focuses on human and vehicle targets classification based on deep learning
Related Accessories
DS-1602ZJ
Wall mount
DS-1604ZJ
Wall mount
DS-1604ZJ-BOX-CORNER
Wall mount
DS-1604ZJ-BOX-POLE
Vertical pole mount
DS-1604ZJ-box
Wall mount
DS-1604ZJ-corner
Corner mount
DS-1604ZJ-pole
Vertical pole mount
DS-1619ZJ
Others
DS-1660ZJ
Wall mount
DS-1661ZJ
Pendant Mount
DS-1662ZJ
Pendant Mount
DS-1663ZJ
In-ceiling mount
DS-1667ZJ
Pendant Mount
DS-1673ZJ
Vertical pole mount
DS-1674ZJ
Junction box
DS-1684ZJ
Vertical pole mount
-
Camera
-
Image Sensor[Bullet channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
-
Min. Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
-
Shutter Speed1 s to 1/30,000 s
-
Slow Shutteryes
-
Focussemi-auto;manual;auto
-
Day & NightICR
-
Zoom[PTZ channel] 25 × optical, 16 × digital
-
Day/Night Switchday, night, auto, scheduled-switch
-
White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB
-
Max. Resolution[Bullet channel] 1920 × 1080, [PTZ channel] 1920 × 1080
-
Lens
-
Focal Length[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
-
Zoom Speed[PTZ channel]: approx. 3.6 s
-
FOV
[Bullet channel]: Horizontal field of view: 106.1°, Vertical field of view: 56.8°，Diagonal field of view: 126.5°;
[PTZ channel]:
Horizontal field of view: 54.8° to 2.8° (wide-tele),
Vertical field of view: 31.4° to 1.5° (wide-tele),
Diagonal field of view: 62.2° to 3.2° (wide-tele)
-
Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.6
-
Illuminator
-
Supplement Light Type[PTZ channel]: IR; [Bullet channel]: White Light
-
Smart Supplement LightYes
-
Supplement Light Range[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
-
PTZ
-
Movement Range (Pan)360°
-
Movement Range (Tilt)-15° to 90° (auto flip)
-
Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
-
Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
-
Proportional Zoomyes
-
Presets300
-
Patrol Scan8 patrols, up to 32 presets for each patrol
-
Pattern Scan4 pattern scans
-
Power-Off Memoryyes
-
Park Actionpreset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
-
3D Positioningyes
-
PTZ Status Displayyes
-
Preset Freezingyes
-
Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
-
Exception DetectionIP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot
-
Video
-
Region Of Interest (ROI)8 fixed regions for each stream
-
Stream Typemain stream;sub-stream;third stream
-
Main Stream
[Bullet channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
-
Sub-Stream
[Bullet channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
-
Third Stream
[Bullet channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
-
Video CompressionH.265;H.264;MJPEG
-
Video Bit Rate32 kbps to 16384 kbps
-
H.264 Typebaseline profile;main profile;high profile
-
H.265 Typemain profile
-
H.264+yes
-
H.265+yes
-
SVCyes
-
Audio
-
Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
-
Audio Bit Rate32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
-
Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
-
Environment Noise Filteringyes
-
Smart Features
-
Smart RecordANR;Dual-VCA
-
Network
-
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
-
Network StorageNAS (NFS, SMB/ CIFS); ANR
-
ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour;WebSocket;WebSockets
-
Simultaneous Live View20
-
User/Host32
-
Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
-
ClientiVMS-4200;Hik-Connect
-
Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+
-
-
Image Settingssharpness, saturation, brightness, contrast
-
Wide Dynamic Range (WDR)120 dB
-
SNR≥ 52 dB
-
DefogDigital defog
-
Image StabilizationEIS
-
Image EnhancementBLC,HLC,3D DNR
-
Regional FocusYes
-
Regional ExposureYes
-
Image Parameters SwitchYes
-
Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
-
Interface
-
Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
-
On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
-
Alarm Input1 alarm input
-
Alarm Output1 alarm output
-
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
-
Audio Output1 audio output, line level, impedance: 600 Ω
-
Event
-
Basic EventMotion detection,video tampering alarm,exception,alarm input and output
-
Smart Eventaudio exception detection,region entrance detection,region exiting detection,intrusion detection,Line crossing detection
-
Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
-
Deep Learning Function
-
Face Capture[Bullet channel] no,[PTZ channel] yes
-
General
-
General Functionmirror,password protection,watermark,IP address filter
-
Power12VDC, PoE+
-
Power Consumption And CurrentMax. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
-
Operating Conditions-30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
-
Resetyes
-
DemistDemist by heating the glass
-
MaterialADC12
-
Dimensions? 166 mm × 375 mm (? 6.5" × 14.7")
-
WeightApprox. 2.4 kg (13.2 lb.)
-
Approval
-
ProtectionIP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
