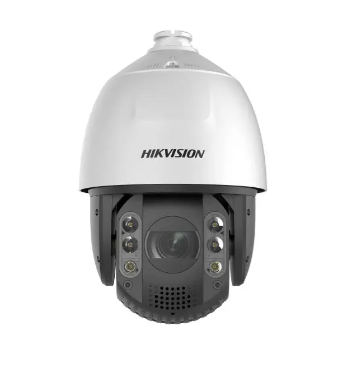

DS-2DE7A425IW-AEB(T5) 7-inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome
1/2.8" progressive scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
25× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 200 m IR distance
Focuses on human and vehicle targets classification based on deep learning
Face capture: Up to 5 faces captured at the same time
Related Accessories
DS-1602ZJ
Wall mount
DS-1604ZJ
Wall mount
DS-1604ZJ-BOX-CORNER
Wall mount
DS-1604ZJ-BOX-POLE
Vertical pole mount
DS-1604ZJ-box
Wall mount
DS-1604ZJ-corner
Corner mount
DS-1604ZJ-pole
Vertical pole mount
DS-1619ZJ
Others
DS-1660ZJ
Wall mount
DS-1661ZJ
Pendant Mount
DS-1662ZJ
Pendant Mount
DS-1663ZJ
In-ceiling mount
DS-1667ZJ
Pendant Mount
DS-1673ZJ
Vertical pole mount
DS-1674ZJ
Junction box
DS-1684ZJ
Vertical pole mount
-
Camera
-
Image Sensor1/2.8" progressive scan CMOS
-
Max. Resolution2560 × 1440
-
Min. IlluminationColor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR
-
Shutter Speed1/1 s to 1/30000 s
-
Slow ShutterYes
-
Day & NightIR cut filter
-
Zoom25x optical, 16x digital
-
DORI
Detect (25px/m): 2046.9 m
Observe (63px/m): 812.3 m
Recognize (125px/m): 409.4 m
Identify (250px/m): 204.7 m
-
Lens
-
Focal Length4.9 mm to 188.8 mm
-
Zoom SpeedApprox. 4.8 s
-
FOV
Horizontal field of view: 50.8° to 2.6° (wide-tele),
Vertical field of view: 29.4° to 1.5° (wide-tele),
Diagonal field of view:57.4° to 3° (wide-tele)
-
ApertureMax. F1.5
-
FocusAuto, semi-auto, manual
-
Illuminator
-
Supplement Light RangeIR Distance: up to 200 m
-
Supplement Light TypeIR
-
PTZ
-
Movement Range (Pan)360°
-
Movement Range (Tilt)-15° to 90° (auto flip)
-
Pan SpeedPan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
-
Tilt SpeedTilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
-
Proportional PanYes
-
Presets300
-
Patrol Scan8 patrols, up to 32 presets for each patrol
-
Pattern Scan4 pattern scans
-
Power-Off MemoryYes
-
Park ActionPreset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
-
3D PositioningYes
-
PTZ Status DisplayYes
-
Preset FreezingYes
-
Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
-
Video
-
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
-
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
-
Video Bit Rate32 kbps to 16384 kbps
-
H.264 TypeBaseline Profile/Main Profile/High Profile
-
H.265 TypeMain Profile
-
Scalable Video Coding (SVC)H.264 and H.265 encoding
-
Region Of Interest (ROI)8 fixed regions for each stream
-
Audio
-
Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
-
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
-
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
-
Environment Noise FilteringYes
-
Network
-
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
-
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
-
APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
-
Simultaneous Live ViewUp to 20 channels
-
User/HostUp to 32 users, 3 user levels: administrator, operator, and user
-
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
-
ClientiVMS-4200, HikCentral Pro, Hik-Connect
-
Web BrowserIE11, Chrome 57+, Firefox 52+, Safari 11+
-
-
Day/Night SwitchDay, Night, Auto, Schedule
-
Image EnhancementBLC, HLC, 3D DNR
-
Wide Dynamic Range (WDR)120 dB
-
DefogDigital defog
-
Image StabilizationEIS
-
Regional ExposureYes
-
Regional FocusYes
-
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
-
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
-
SNR> 52 dB
-
Interface
-
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
-
On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
-
Alarm2 inputs, 1 output
-
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
-
ResetYes
-
Built-In Speaker1 built-in speaker with effective distance reaching max. 30 meters
-
Event
-
Basic EventMotion detection, video tampering alarm, exception, alarm input and output
-
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
-
Smart TrackingManual tracking, auto-tracking
-
Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
-
Deep Learning Function
-
Face Capture
Detects up to 5 faces simultaneously.
Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
-
General
-
Power
24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);
Hi-PoE
-
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
-
DemistYes
-
MaterialADC12
-
Dimension? 220 mm × 363.3 mm (? 8.66" × 13.91")
-
WeightApprox. 5 kg (11.03 lb.)
-
Approval
-
ProtectionIP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
-
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019);
KC (KN 32: 2015, KN 35: 2015)
-
Safety
UL (UL 62368-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (SANS IEC60950-1)
-
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
