Brand:pelco
Model:P1220-FWH0
lens: f/1.6 ~ f/4.2 focal length 4.3 mm (wide) ~ 86.0 mm (tele)
Horizontal Angle of View 55.4° (wide) ~ 2.9° (tele)

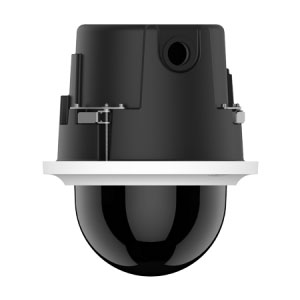

Pelco P1220-FWH0 In-Ceiling Indoor Cameras
Spectra® Professional Series IP Dome System
P1220 MODELS, HIGH DEFINITION PAN/TILT/ZOOM HIGH-SPEED DOME
Product Features
? Up to 1920 x 1080 Resolution
? 16:9 Aspect Ratio; 1080p at 30 Images per Second (ips)
? 2.0 Megapixel (MPx), 20X Optical Zoom, 12X Digital Zoom IP Camera
? Ability to Control and Monitor Video Over IPv4 Network
? Built-in Analytics Including Motion Detection and Camera Sabotage
? 2 Video Streams: Dual H.264 or H.264 and Scalable MJPEG
? 360° Continuous Pan Rotation up to 430° per Second
? Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP,DNS, DHCP, RTP, RTSP, NTP, and More
? PoE+ IEEE 802.3at Class 4 (For Non-Environmental Units)
? 16 Preset Tours, 128 Dome Presets, 8 Window Blanks
? Open IP Standards
? ONVIF Profile S and Profile G ConformanCAMERA/OPTICS
Sensor Type 1/3-inch CMOS Sensor
Optical Zoom 20X
Digital Zoom 12X
Maximum Resolution 1920 x 1080
Lens f/1.6 ~ f/4.2
focal length 4.3 mm (wide) ~ 86.0 mm (tele)
Horizontal Angle of View 55.4° (wide) ~ 2.9° (tele)
Aspect Ratio 16:9
Shutter Range 1 ~ 1/8,000 sec
Dynamic Range 60 dB
White Balance Range 2,500° to 8,000°K
3D Noise Reduction Yes (ON/OFF selectable)
Signal to Noise Ratio 50 dB
Light Sensitivity
Color (33 ms) 0.3 lux
Color (200 ms) 0.08 lux
Mono (33 ms) 0.1 lux
Mono (200 ms) 0.015 lux
Note: Sensitivity in lux for 90% reflectance, f/1.6 (wide angle), 24 dB noise
at 30 IRE (30% of signal level).
Day/Night Capabilities Yes
IR Cut Filter Yes
Iris Control Auto iris
Automatic Gain Control Yes
Active Noise Filtering Yes
SOFTWARE FEATURES
? 128 Presets
? 16 Tours
? Preset Accuracy: Pan ±0.1°; Tilt ±0.05°
? Multilingual Menus (English, Spanish, Portuguese, Italian, German,French, Russian, Turkish, Arabic, Simplified Chinese, and Korean)
? Password Protection
? 430°/sec Maximum Pan Preset Speed and 200°/sec Maximum Tilt Preset Speed
? 8 Window Blanks, Configurable in Size*
? “Auto Flip” Feature Rotates Dome 180° at Bottom of Tilt Travel
? Configurable Park with Actions
? Proportional Pan/Tilt Continually Decreases Pan/Tilt Speeds in Proportion to Depth of Zoom
*Using the maximum number of window blanks in a single view can affect camera performance and could interrupt certain camera functions.

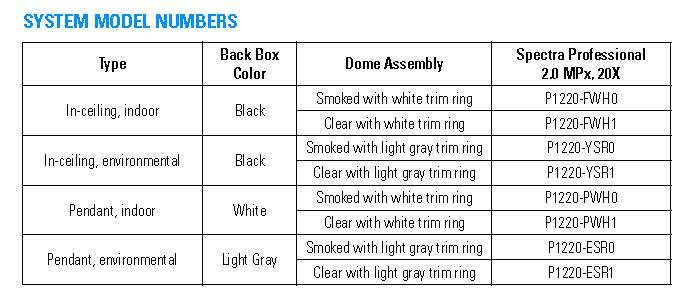

COMPONENT MODEL NUMBERS
Dome Assemblies
LDP-FWH-0 In-ceiling, indoor, white trim ring, smoked dome
LDP-FWH-1 In-ceiling, indoor, white trim ring, clear dome
LDP-YSR-0 In-ceiling, environmental, light gray trim ring, smoked dome
LDP-YSR-1 In-ceiling, environmental, light gray trim ring, clear dome
LDP-PWH-0 Pendant, indoor, white trim ring, smoked dome
LDP-PWH-1 Pendant, indoor, white trim ring, clear dome
LDP-ESR-0 Pendant, environment, light gray trim ring, smoked dome
LDP-ESR-1 Pendant, environment, light gray trim ring, clear dome
