Brand:Honeywell
Model:HDZ302D

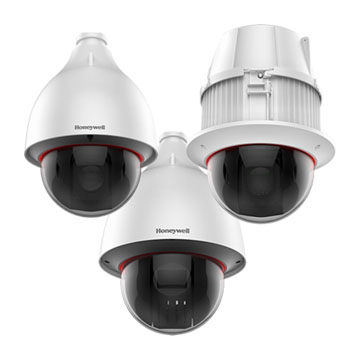

HDZ302D Honeywell 2MP Indoor Outdoor WDR 30x PTZ IP Camera
HDZ302DE / HDZ302D / HDZ302DIN-C1 / HDZ302DIN-S1
2MP Indoor/Outdoor WDR 30x PTZ IP Cameras
Honeywell’s latest HDZ PTZ is part of the growing line of IP-based products. The high definition, True Day/Night WDR PTZ cameras provide extremely crisp video with up to 2 million effective pixels and 30x optical zoom for continuous surveillance in both outdoor and indoor applications.
Superior Image Quality
Full HD 1080p resolution, 50/60 fps image with a 1/2.8” 2 megapixel sensor
True WDR 120 dB ensures glare-free images
True Day/Night provides vivid color images by day and clear blackand-white images at night with ICR (Infrared Cut Filter Removal)
Excellent low-light performance with 3D noise reduction, saving storage and bandwidth together with H.265 codec
Flexible Surveillance Solution
4.5–135 mm, F1.6-F4.4, 30x optical zoom lens with 360° continuous rotation for the flexibility to clearly view the target area with desired width and depth
H.265, H.264 and MJPEG codec, triple stream support
Waterproof (IP67/IP66) and IK10 vandal resistant camera housing (IP67 only for HDZ302DE model, and IP66 only for HDZ302D model)
–40°F to 158°F (–40°C to 70°C) HDZ302DE working temperature, –40°F to 140°F (–40°C to 60°C) HDZ302D working temperature, 14°F to 140°F (–10°C to 60°C) HDZ302DIN working temperature
ONVIF Profile S and G compliant
Built-in Analytics in the camera, such as face detection, audio detection, and auto-tracking
Security features include individual signed certificates and data encryption
Easy to Install and Use
Built-in High PoE (Power over Ethernet) eliminates separate power supply and associated wiring; 24 V AC input where PoE power is unavailable
Wide range of mounting options, including optional snap mount bracket (HDZINS M) to allow in-ceiling installation to previous HDZ back can housing models (HDZ22HDIN, HDZ30HDIN, and HDZ30IN)
Remote configuration, motorized pan, tilt and zoom adjustments and auto focus through web client
Onboard Video Storage
Supports up to 128 GB microSD HC (Class 10) card for local video storage on events, continuous, or schedule, or with network interruption. Card not included
Market Opportunities
The combination of the latest digital technology and advanced video processing makes HDZ ideally suited for large-scale surveillance in cities, roadways, airports, government facilities, schools and campuses, industrial environments and anywhere detailed surveillance is essential.
The camera can be configured to automatically detect and respond to events such as motion in the scene, alarm inputs, network failure, and/or camera tampering. Automated responses include: sending a notification through email, FTP, and/or HTT P; sending a still image of the event through email and/or FTP; and recording a video clip of the event to a configured microSD HC card. Setup can be done through a web client.
4.5–135 mm, F1.6-F4.4, 30x optical zoom lens
1/2.8” progressive scan image sensor
Up to 50/60 fps primary stream
Up to 25/30 fps secondary streams
Up to triple stream support
Ultra-low light performance
Global language support with 15 languages for all QIGs, Web GUI, and online help
Excellent low light performance with down to 0.0005 lux BW
Electronic image stabilizer (EIS)
Multiple, selectable compression formats (H.265/H.264/MJPEG)
True WDR: 120 dB
Built-in Analytics, including Auto-tracking, Face detection
Rugged outdoor housing with IK10 vandal resistance
Choice of 24 V AC or PoE+ power inputs
On board camera storage: up to 128 GB microSD card (not included)
ONVIF profile S and G compliant
Waterproof IP67 ingress protection rating for HDZ302DE models and IP66 for HDZ302D models
Cyber security hardware chipset built-in
ACCESSORIES
HOUSINGS NAD MOUNTS (HDZ302D AND HDZ302DE)
HDZNPTA1.5” NPT Adapter
HDZWM1Wall Mount
HDZWM2Wall Mount with access hole
HDZCMACorner Mount adapter for wall mount
HDZPMAPole Mount adapter for wall mount
HDZCM1Ceiling Mount
HDZJBJunction Box
HDZGMWall Mount Gooseneck Bracket (HDZ302D only)
HDZCM2Ceiling Mount extension pole for HDZCM1, 220 mm
HDZCM3Ceiling Mount extension pole for HDZCM1, 420 mm
ACCESSORIES (HDZ302DIN ONLY)
HDZINPLIn-Ceiling PTZ Camera Support Plate (Drop Ceiling)
HDZINSMIn-Ceiling PTZ Camera Snap Mount used with HDZINKIT to make compatible with old in-ceiling back can housings
HONEYWELL DEVICE INTEGRATION
MAXPRO® NVR FAMILYEntry to Enterprise Level Network Video Recorders (version 4.0 and greater)
MAXPRO® VMS FAMILYEntry to Enterprise Level Network Video VMS (version R410 and greater)
DVMDVM R600.1 SP1
HUSHUS 5.1
HDZ302DENetwork TDN PTZ 6” Indoor/Outdoor Dome, 1080p Resolution, 30x Zoom, WDR, H.265/H.264, NTSC/PAL, IK10, IP67, micro SD Card Compatible (Supports up to 128 GB cards, card not included)
HDZ302DNetwork TDN PTZ 5” Indoor/Outdoor Dome, 1080p Resolution, 30x Zoom, WDR, H.265/H.264, NTSC/PAL, IK10, IP66, micro SD Card Compatible (Supports up to 128 GB cards, card not included)
HDZ302DIN-C1Network TDN PTZ Indoor, In-Ceiling Dome Clear Bubble, 1080p Resolution, 30x Zoom, WDR, H.265/H.264, NTSC/ PAL, IK10, micro SD Card Compatible (Supports up to 128 GB cards, card not included)
HDZ302DIN-S1
Network TDN PTZ Indoor, In-Ceiling Smoked Bubble, 1080p Resolution, 30x Zoom, WDR, H.265/H.264, NTSC/PAL, IK10, micro SD Card Compatible (Supports up to 128 GB cards, card not included)
