Brand:Honeywell
Model:HEPZ302W0

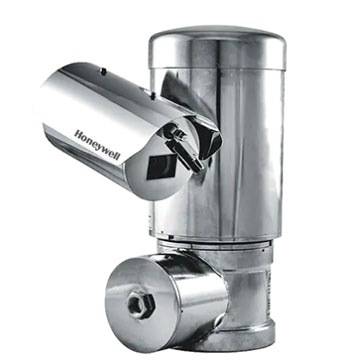

HEPZ302W0 Honeywell 2MP WDR 30x PTZ IP Explosion-proof Camera
Honeywell’s latest explosion-protected PTZ network camera is a good fit for onshore, offshore, marine, and heavy industrial installations in hazardous and challenging environments. The camera features a 316L stainless steel housing certified for hazardous areas according to ATEX, IECEx, and UL. The housing prevents any interior sparks or explosions from escaping and igniting the gases or dust in the surrounding air. The HEPZ cameras provide extremely crisp video with up to 2 million effective pixels, 30x optical zoom, and True Day/Night WDR for continuous surveillance in both hazardous and safe area applications.
Explosion-Proof Certification
ATEX, IECEx, UL certified with AISI 316L stainless steel construction
Certifications for use in Zone 1 and 2, Group IIC T6 (Gas), and in Zone 21 and 22, Group IIIC T85° (Dust)
Certified temperature for explosion-proof applications: –40°F to 140°F( –40°C to 60°C )
3/4" NPT threaded hole for use of cable glands or conduit
IP66 rating guarantees complete protection against harsh weather
Flexible Surveillance Solution
1080p 60 fps and 30x optical zoom lens for the flexibility to clearly view the target area with desired depth of view
H.265, H.264 and MJPEG codec, triple stream support
Support for unicast and multicast mode for streaming
ONVIF Profile S and Q compliant
Supports face detection, real-time intrusion detection and unauthorized loitering detection* analytics
Security features include individual signed certificates and data encryption
Easy to Install and Use
24 VAC power input
Built-in heater
Integrated sunshield, wiper, and optional washer system (ATEX certified only), operated from the web client or special system preset
Optional 4 m or 10 m multipolar armored cable with barrier cable gland (ATEX/IECEx certified) and cable tail with conduit cable gland
Wide range of mounting options
Remote configuration, motorized zoom adjustments and auto focus through web client
Market Opportunities
The camera features stainless steel housing and offers full HD resolution image quality. They are ideally suited for video surveillance monitoring of onshore, offshore, marine, and heavy industrial environments, such as the oil and gas industries, as well as dusty environments, such as the paper and textile industries.
4.5–135 mm, F1.6– F4.4, 30x optical zoom lens
1/2.8" progressive scan image sensor
Excellent low light performance with down to 0.0005 lux B/W
Up to 50/60 fps primary stream. Up to 25/30 fps secondary streams
Up to triple stream support
Electronic image stabilizer (EIS)
True WDR: 120 dB
Multiple, selectable compression formats (H.265/H.264/MJPEG)
Support for Face detection, ADPRO IntrusionTrace* and ADPRO LoiterTrace*
Global language support with web GUI and online help in 15 languages
Installation environment temperature: –40°F to 140°F (–40°C to 60°C)
24 VAC power input
Cyber security hardware chipset built-in
ONVIF profile S and Q compliant
Water resistant IP66 ingress protection rating
The camera can be configured to automatically detect and respond to events such as motion in the scene, alarm inputs, network failure, and/or camera tampering. Automated responses include: sending a notification through email, FTP, and/or HTTP; and sending a still image of the event through email and/or FTP. Setup can be done through a web client.
HEPZ302W0 Network Explosion-Proof PTZ Camera, ATEX/IECEx/UL, 1/2.8" CMOS, 1080p Resolution, 30x Zoom, WDR, 4.5—135 mm MFZ, H.265/H.264, with Wiper, IP66, 24 VAC, –40°C to 60°C
Support Material
HEPZWM Dimentions
HEPZPRM Dimensions
HEPZPMA Dimensions
HEPZCMA Dimensions
HEPWS Dimensions
