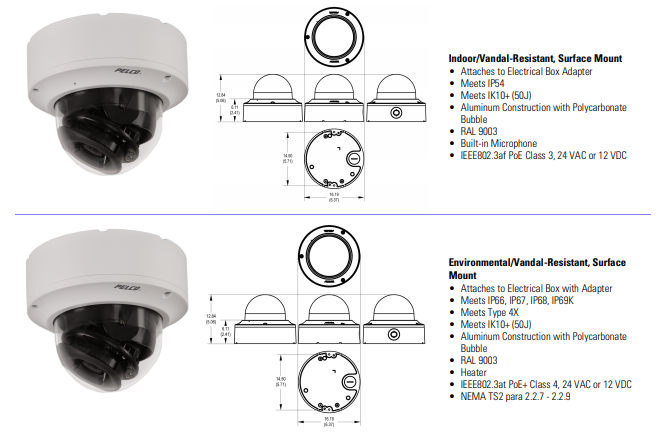

IME539-1ERS IME539-1IRS Pelco IME Dome Camera
Product Features
? SureVision Technology (Advanced Low-Light & WDR Performance Simultaneously, Anti-Bloom Technology, 3D Noise Filtering, and Enhanced Tone Mapping)
? Up to 8 Megapixel (MP) Resolution
? Up to 120 Frames per Second (fps) at 1080p on select models
? Up to 130 dB Wide Dynamic Range (2 MP and 3 MP Models), Up to 120 dB Wide Dynamic Range (5 MP and 4 K Models)
? Adaptive IR Illumination (850 nm) up to 50 Meters
? Robust Electronic Image Stabilization
? Built-in Pelco Enhanced Analytics Suite & Capable of Advanced Deep Learning Analytics Available Separately
? H.265, H.264, and MJPEG Encoding with Pelco Smart Compression
? Power Redundancy From PoE/PoE+ to 12 VDC / 24 VAC
? IP66, IP67, IP68, IP69K, Type 4X (Environmental Models Only)
? IK10+ (50 Joules) Rated Vandal Resistant
? Support for Local Storage with Micro SD Slot for SDHC/SDXC Card
? Compatible with Pelco and Third-Party Video Systems
? ONVIF Profile S, Profile G, and Profile T Conformant
? Full 3-Year Warranty and Support
 CAMERA
  Imaging Device 1/2.8-inch or 1/1.8-inch
  Imager Type CMOS
  Imager Readout Progressive scan
  Highest Resolution
  4 K 3840 x 2160
  5 MP 2592 x 1944
  3 MP 2048 x 1536
  2 MP 1920 x 1080
  Signal-to-Noise Ratio >60 dB
  Electronic Shutter Range 1/10000 sec (or faster) to 1sec
  Wide Dynamic Range Up to 130 dB (2 MP and 3 MP Models),
  Up to 120 dB (5 MP and 4 K Models)
  White Balance Range: 2,500° to 10,000°K; Selectable Auto/   Manual
  Day/Night Capabilities Mechanical IR cut filter (ON/OFF/AUTO), with
  different set points on lux
  Adaptive IR Illumination 850nm wavelength, maximum distance of
  50 meters (164 feet)
  3D Noise Reduction Yes (ON / OFF selectable)
 AUDIO
 Streaming Bidirectional: full or half duplex
 Built-In Microphone 60 SPL @ 25 feet >40dB SNR (indoor models  only)
 Input Line level, 3K ohm differential with/1Vp-p
 maximum signal
 Output Line level, 600 ohm differential with/1Vp-p
 Encoding G.711-Alaw/G711-Ulaw
 GENERAL
 Pan/Tilt Adjustment Manual
 Pan 0° ~ 370°
 Tilt -10° ~ -90°
 Rotation ±100°
 Construction Aluminum with polycarbonate bubble
 Finish White, RAL 9003
 Weight
 Unit 1.41 kg (3.1 lb)
 Shipping 1.81 kg (4 lb)
 EPA 36.9 in^2
ENVIRONMENTAL
Operating Temperature
Indoor/Vandal-Resistant –10° to 55°C (14° to 131°F)?
Environmental –50° to 60°C (–58° to 140°F)?
4-Hour Duration Maximum
Operating Temperature 65°C (149°F) (environmental models)
Start-up Temperature
Indoor –10°C (14°F)
Environmental –40°C (–40°F)
Storage Temperature
Indoor and Environmental –40° to 60°C (–40° to 140°F)
Operating Humidity
Indoor/Vandal-Resistant 10 to 90%, RH condensing
Environmental 10 to 100%, RH condensing
Storage Humidity 20 to 80%, RH noncondensing
Impact Resistance IK10+ (50 J)
Ingress Protection IP54 (indoor models),
IP66, IP67, IP68, IP69K, Type 4X (environmental models)
Shock and Vibration
Resistance Tested in accordance to EN 50155 (EN 61373,
Category 1, Class B); IEC/EN 60068:2-6 and 2-27
Back Box Resolution ModelNumber Lens Description
2 MP IME238-1ERS 2.8 ~ 8 mm 2 MP Sarix Enhanced IR Environmental Dome
2 MP IME238-1IRS 2.8 ~ 8 mm 2 MP Sarix Enhanced Indoor IR Dome
3 MP IME332-1ERS 8 ~ 20 mm 3 MP Sarix Enhanced Environmental IR Dome
3 MP IME332-1IRS 8 ~ 20 mm 3 MP Sarix Enhanced Indoor IR Dome
3 MP IME338-1ERS 2.8 ~ 8 mm 3 MP Sarix Enhanced Environmental IR Dome
3 MP IME338-1IRS 2.8 ~ 8 mm 3 MP Sarix Enhanced Indoor IR Dome
5 MP IME539-1ERS 4 ~ 9 mm 5 MP Sarix Enhanced Environmental IR Dome
5 MP IME539-1IRS 4 ~ 9 mm 5 MP Sarix Enhanced Indoor IR Dome
4 K IME832-1ERS 9 ~ 20 mm 4K Sarix Enhanced Environmental IR Dome 4K
4 K IME832-1IRS 9 ~ 20 mm 4K Sarix Enhanced Indoor IR Dome 4K
4 K IME839-1ERS 4 ~ 9 mm 4K Sarix Enhanced Environmental IR Dome 4K
4 K IME839-1IRS 4 ~ 9 mm 4K Sarix Enhanced Indoor IR Dome 4K
 RECOMMENDED MOUNTS
 PA101 with WMVE-SW &
 IME3PM-E Pole Mount for use with WMVE-SW &
 IME3PM-E
 IME3ICM-E In-ceiling mount, RAL 9003
 IME3PM-E Pendant mount, RAL 9003
 IMM-CM with WMVE-SW &
 IME3PM-E Corner mount for use with WMVE-SW &
 IME3PM-E
 IME3EBAP-E Electrical box adapter
 WMVE-SW Wall mount, 1.5 in. NPT, RAL 9003
 IWM-SW Wall mount with cable feedthrough, RAL9003
 IWM24-SW Wall mount with cable feedthrough, includes
 integral 24 VAC, 100 VA transformer,
 RAL9003
 PP350/PP351 Parapet wall/roof mount, RAL9002
 PP450/PP451 Parapet wall/roof mount, RAL9002
 OPTIONAL ACCESSORIES
 IME3LD-0E Smoked lower dome (environmental)
 IME3LD-1E Clear lower dome (environmental)
 IME3LD-0 Smoked lower dome (indoor)
 IME3LD-1 Clear lower dome (indoor)
 POWER SUPPLIES
 WCS Series Outdoor, 24 VAC power supply
 POE130-XT Single-port PoE Gigabit extender powered by
 POE190-BT injector
 POE130-AT (US or EU) Single-port PoE+ midspan with power cord
 POE430-AT (US or EU) 4-port, 30W per port PoEmidspan with power  cord
 POE1236-AT (US or EU) 12-port, 36W PoE midspan
 POE2436-AT (US or EU) 24-port, 36W PoE midspan
