Brand:Pelco
Model:S7230L-EB1
S7230L-FW1
Lens:6.36mm (wide)-138.5mm(tele)

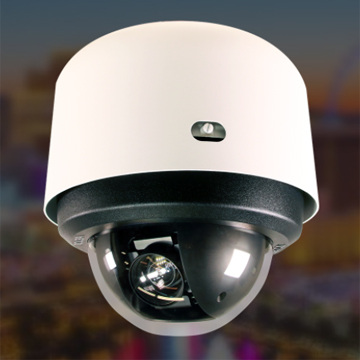

S7230L-EB1 S7230L-FW1 Pelco 7 Series IP PTZ Dome Camera
Product Features
? SureVision Technology, Including:
– Up to 130 dB Wide Dynamic Range (WDR)
– Advanced Low Light Down to 0.02 lux (Color), 0.013 lux (Mono)
– Anti-Bloom Technology
– 3D Noise Filtering
– Enhanced Tone Mapping
? Up to 4K and up to 60 Images per Second (ips) Pan/Tilt Drive
? Robust Image Stabilization (EIS) with Gyro
? Built-in Pelco Enhanced Analytics Suite
? Pelco Advanced Analytics Capable
? Power over Ethernet (802.3bt), 24 VAC, 48 VDC
? H.264 and H.265 Pelco Smart Compression Technology
? Three Automatic Defog Options
? Vandal Resistant IK10 Housing and Smoked or Clear Bubble
? SD Card Slot with Support for SDXC Cards
? Compatible with Pelco and Third-Party Video Systems
? ONVIF Profile S, Profile G, and Profile T Conformant
? 3-Year Warranty and Support
In-Ceiling (Indoor 4K)
? Single Back Box for Suspended or Hard Ceiling Applications with White Trim Ring, RAL9003
? Requires 13.35 cm (5.25 in.) Space Above Ceiling and 8.25 cm (3.25 in.)Below
? Minimum Ceiling Thickness 1.27 cm (0.50 in.); Maximum 4.45 cm (1.75 in.)
? Aluminum Construction, IK10 Rated Housing and Polycarbonate Bubble
? Suitable for Use in Environmental Air Handling Spaces
? –10° to 55°C (14° to 131°F) Sustained Operating Temperature
In-Ceiling (Indoor 2MP)
? Single Back Box for Suspended or Hard Ceiling Applications with White Trim Ring, RAL9003
? Requires 13.35 cm (5.25 in.) SpaceAbove Ceiling and 8.25 cm (3.25 in.) Below
? Minimum Ceiling Thickness 1.27 cm(0.50 in.); Maximum 4.45 cm (1.75 in.)
? Aluminum Construction, IK10 Rated Housing and Nylon Bubble
? Suitable for Use in Environmental Air Handling Spaces
? –10° to 55°C (14° to 131°F) Sustained Operating Temperature
GENERAL
Construction
Back Box Aluminum
Dome Drive Aluminum, thermoplastic
Lower Dome Nylon for 2 MP models, polycarbonate for 4K models
Light Attenuation
Smoked f/0.5 light loss
Clear f/0.0 light loss
Cable Entry (back box)
In-Ceiling 0.75-inch conduit fitting
Pendant Through 1.5-inch NPT pendant mount
Unit Weight (1080p models) (4K models)
In-Ceiling, Indoor 3.0 kg (6.6 lb) 3.2 kg (7.05 lb)
In-Ceiling, Environmental 3.4 kg (7.5 lb) 3.6 kg (7.94 lb)
Pendant, Environmental 3.9 kg (8.6 lb) 4.1 kg (9.04 lb
Effective Projected Area (EPA)
Pendant Withoutmount andwith sun shield, 47 square inches
With IWMSeries mount with sun shield, 96.5 square inches
In-ceiling, Indoor
S7230L-FW0 Spectra Enh7 1080p 30X Indoor In-Ceiling White Smoked Bubble
S7230L-FW1 Spectra Enh7 1080p 30X Indoor In-Ceiling White Clear Bubble In-ceiling,
Environmental 2MP Black Black
S7230L-YB0 Spectra Enh7 1080p 30X Env In-Ceiling Black Smoked Bubble
S7230L-YB1 Spectra Enh7 1080p 30X Env In-Ceiling Black Clear Bubble Pendant,
Environmental 2MP White Black
S7230L-EW0 Spectra Enh7 1080p 30X Env Pendant White Smoked Bubble
S7230L-EW1 Spectra Enh7 1080p 30X Env Pendant White Clear Bubble Pendant,
Environmental 2MP Black Black
S7230L-EB0 Spectra Enh7 1080p 30X Env Pendant Black Smoked Bubble
S7230L-EB1 Spectra Enh7 1080p 30X Env Pendant Black Clear Bubble
S7818L-FW0 Spectra Enh7 4K 20X Indoor In-Ceiling White Smoked Bubble
S7818L-FW1 Spectra Enh7 4K 20X Indoor In-Ceiling White Clear Bubble In-ceiling,
Environmental 4K Black Black
20X S7818L-YB0 Spectra Enh7 4K 20X Env In-Ceiling Black Smoked Bubble
20X S7818L-YB1 Spectra Enh7 4K 20X Env In-Ceiling Black Clear Bubble Pendant,
Environmental 4K White Black
S7818L-EW0 Spectra Enh7 4K 20X Env Pendant White Smoked Bubble
S7818L-EW1 Spectra Enh7 4K 20X Env Pendant White Clear Bubble Pendant,
Environmental 4K Black Black
S7818L-EB0 Spectra Enh7 4K 20X Env Pendant Black Smoked Bubble
S7818L-EB1 Spectra Enh7 4K 20X Env Pendant Black Clear Bubble
COMPONENT MODEL NUMBERS
B7-F In-ceiling Indoor LD7F-0 Indoor, White, Smoked, 1080p D7230L 1080p 30X
B7-F-E In-ceiling, Environmental LD7F-1 Indoor, White, Clear, 1080p D7818L 4K 20X
B7-PW-E Pendant Environmental, White LD7PB-0 Environmental, Black, Smoked, 1080p
B7-PB-E Pendant Environmental, Black LD7PB-1 Environmental, Black, Clear, 1080p
*Use the environmental lower domes with the environmental in-ceiling and environmental pendant back boxes.
High Definition HD Lower Dome
LD7F-0
LD7F-1
LD7PB-0
LD7PB-1
LD7AF-0 Indoor, White, Smoked, 4K
LD7AF-1 Indoor, White, Clear, 4K
LD7APB-0 Environmental, Black, Smoked, 4K
LD7APB-1 Environmental, Black, Clear, 4K
Dome Drive
D7230L 1080P 30X
D7818L 4K 20X
RECOMMENDED MOUNTS
Pendant Domes
IWM Series Wall mount, white or black finish; can be adapted for corner, parapet, or pole application
IWM-MKIT Marine kit is designed to protect the Spectra Series dome systemmounted to the IWMarm from galvanic corrosion.
IWM24 Series Wall mount, with integral 24 VAC, 100 VA transformer; white or black finish; can be adapted for corner, parapet or pole application
PP350/PP351 Parapet wall/roof mount
SWM Series Compact wall mount, white or black finish;can be adapted forcorner or pole applications
IDM4012SS-SW Mount arm feed-thru, stainless steel, RAL 9003
IDM4018-SW Mount arm feed-thru, white, RAL 9003
OPTIONAL ACCESSORIES
POE90U1BT-EUK 90W HPoE 802.3BT single port injector EU and UK power cord included
POE90U1BT-US 90W HPoE 802.3BT single port injector US power cord included
POE90U1BT 90W HPoE 802.3BT single port injector power cord not included
WCS1-4 Model (WCS Series) Outdoor single 24 VAC power supply power cord not included
ECPS-48VDC-5A 48 VDC indoor power supply
In-Ceiling Domes
SD5-P 2’ x 2’ ceiling panel, aluminum construction; replaces 2’ x 2’ ceiling tile
SCA1 Support rails for B7-F; for use in ceiling tile applications
