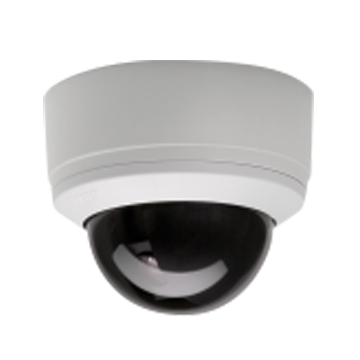

SD4N-W0-X SD4N-W1-X Pelco DIGITAL Mini IP Network Dome
MODELS
SD4N-B0 Indoor dome system, black, smoked bubble, NTSC
SD4N-B1 Indoor dome system, black, clear bubble, NTSC
SD4N-B0-X Indoor dome system, black, smoked bubble, PAL
SD4N-B1-X Indoor dome system, black, clear bubble, PAL
SD4N-W0 Indoor dome system, white, smoked bubble, NTSC
SD4N-W1 Indoor dome system, white, clear bubble, NTSC
SD4N-W0-X Indoor dome system, white, smoked bubble, PAL
SD4N-W1-X Indoor dome system, white, clear bubble, PAL
OPTIONAL MOUNTS
SPM4-W Pendant mount, white
SPM4-B Pendant mount, black
SWM4-W Pendant-wall mount, white
SWM4-B Pendant-wall mount, black

CAMERA
Signal Format NTSC/PAL
Scanning System 2:1 interlace
Image Sensor 1/4-inch interline CCD
Effective Pixels
NTSC 768 (H) x 494 (V)
PAL 752 (H) x 582 (V)
Minimum Illumination 3.0 lux
White Balance Automatic with manual override
Shutter Speed Automatic (electronic iris)/manual
1/60~/30,000
Gain Control Automatic with manual override
LENS Lens f/1.8 (f= 4.2~42 mm optical) 10X optical zoom,
8X digital zoom
Zoom Speed (optical range) 1.5/2.5/4.3 seconds
Horizontal Angle of View 46.4° wide zoom;
5.0° telephoto zoom
Focus Automatic with manual override
Iris Control Automatic with manual override

GENERAL
Construction
Top Cap Alodined cast aluminum
Dome Drive ABS plastic
Trim Ring and
Surface Mount Ring ABS plastic
Bubble Acrylic
Finish White or black
Light Attenuation
Smoked f/0.5 light loss
Clear Zero light loss
Cable Entry RJ45-10 connector for PoE and 100Base-TX,
auto MDI/MDI-X, autonegotiate; 2-position
24 VAC input terminal connector
Cable Type Cat5 or better for 100Base-TX
Environment Indoor
Operating Temperature 32° to 122°F (0° to 50°C)
Unit Weight 1.88 lb (0.85 kg)
Shipping Weight 4 lb (1.81 kg)
Product Features
? Ability to Control and Monitor Video Over IP Network
? 3 Simultaneous Video Streams
– Dual MPEG-4 (30 ips)
– Scalable MJPEG
? Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMp), UPnP,DNS, DHCP, RTP, NTP
? Power over Ethernet (PoE) Compatible
? Single Model for Surface Mount and In-Ceiling Applications
? Autofocus, High Resolution Integrated Color Camera/Optics Package
? 80X Zoom (10X Optical, 8X Digital)
? Zone Blanking
? 64 Presets
? 0.5° Preset Accuracy
? 140°/Second Pan Speed
? 360° Continuous Pan
? Rotating Discreet Liner
? Bidirectional Full-Duplex Audio
