Mega-Pixel Fixed Focal Lenses
Tamron's FA / Machine Vision fixed focal length lenses incorporate advanced technologies in compact packages to deliver ultrahigh optical quality even in close-focusing distances, providing ideal solutions in a wide range of image processing applications.

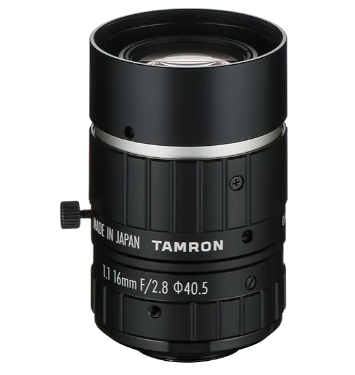

MA111F16VIR FA and Machine Vision Lenses
Imager Size 1.1"
Focal Length 16mm
Aperture Range F/2.8-16
Iris Manual Iris
Model No.
MA111F16VIR
Imager Size 1.1"
Mount Type C
Focal Length 16mm
Aperture Range F/2.8 - 16
Field of View Angle
(Horizontal x Vertical) 1.1" 47.7° x 36.8°
2/3" 30.8° x 23.3°
1/2" 22.6° x 17.0°
Focusing Range 0.1m - ∞
Operation Focus Manual w/lock
Iris Manual w/lock
Filter Size M40.5 P=0.5
Wave Length Visible Light - Near Infrared
TV Distortion 0.2% (*)
Weight 178g
Operating Temperature -20°C - +60°C
