Detail

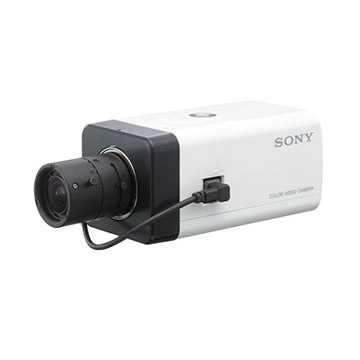

SNC-EB630B Basic Box-type 1080p/30 fps Camera
Camera
Image Sensor1/2.9-type progressive scan Exmor CMOS sensor
Number of Effective PixelsApprox. 2.14 Megapixels
Signal SystemNTSC/PAL (switchable)
Sync SystemInternal synchronization
Minimum Illumination (50 IRE)Color: 0.1 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0.07 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
Minimum Illumination (30 IRE)Color: 0.06 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0.05 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
Dynamic RangeEquivalent to 90 dB with View-DR technology
S/N Ratio (Gain 0 dB)More than 50 dB
GainAuto
Shutter Speed1/1 s to 1/10,000 s
Exposure ControlExposure compensation, Shutter speed, Iris
White BalanceATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual
LensCS-mount varifocal lens
Zoom RatioOptical zoom 2.9x
Digital zoom 4x
Total zoom 11.6x
Horizontal Viewing Angle114.2° to 40.0°
Vertical Viewing Angle60.6° to 22.5°
Focal Lengthf = 2.8 mm to 8.0 mm
F-NumberF1.2 (Wide) to F1.95 (Tele)
Minimum Object Distance300 mm
Camera Features
Day/NightElectronic D/N
Image rotate90°, 270°
MirroringYes
Wide-DView-DR
Tone CorrectionVisibility Enhancer
Noise ReductionXDNR
Image StabilizerElectronic
Picture ModeYes
Privacy Masking (number)20
Privacy Masking (shape)Quadrangle formed by any four corner points
Privacy Masking (color/effect)Opaque 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic
Superimpose Number3 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for logo marks
Superimpose LanguageEnglish
Menu LanguageEnglish, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai
Smartphone viewerYes
Video
Resolution1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG)
Compression FormatH.264 (High/Main/Baseline Profile), JPEG
Maximum Frame RateH.264: 30 fps (1280 x 1024)
JPEG: 30 fps (1280 x 1024)
Bitrate Control ModeCBR/VBR (selectable)
Range of Bit Rate Setting64 Kbps to 32 Mbps
Solid PTZYes
Adaptive Rate ControlH.264
Bandwidth ControlJPEG
Multi streaming CapabilityYes (3)
Number of Clients20
Intelligent Video/Audio Analytics
Analytics ArchitectureDEPA Advanced
Intelligent Motion DetectionYes
Face DetectionYes
Tamper AlarmYes
Scene AnalyticsPassing, Intrusion, Left Object Detection, Removed Object Detection
System Requirements
Operating SystemWindows XP (32 bit) Professional Edition
Windows Vista (32 bit) Ultimate, Business Edition
Windows 7 (32/64 bit) Ultimate, Professional Edition
Windows 8 Pro (32/64 bit)
Windows 8.1 Pro (32/64 bit)
ProcessorIntel Corei7 2.8 GHz or higher
Memory2 GB or more
Web BrowserMicrosoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0, Ver. 10.0, Ver. 11.0
Firefox Ver. 19.02 (plug-in free viewer only)
Safari Ver. 5.1 (plug-in free viewer only)
Google Chrome Ver. 25.0 (plug-in free viewer only)
SNC toolboxYes
SNC toolbox mobileYes
Network
ProtocolsIPv4, TCP, UDP, ARP, ICMP, IGMP*, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP over HTTP, IPv6, HTTPS, FTP (client), SNMP (v1, v2c, v3), SSL
*SSM (Source Specific Multicast) is supported.
Number of IP Address/Mac ADDRESS1
QoSDSCP
Multicast Streaming SupportYes
ONVIF ConformanceProfile S, Profile T
AuthenticationIEEE802.1X
Interface
Analog Monitor Output for SetupMini jack x1
Network Port10BASE-T/100BASE-TX (RJ-45)
General
Power RequirementsIEEE 802.3af compliant (PoE system)
Power Consumption5.0 W max.
Operating Temperature-10℃ to +60℃
14°F to 140°F
Cold Start Temperature0℃ to +60℃
32°F to 140°F
Storage Temperature-20 ℃ to + 60 ℃
-4 °F to + 140 °F
Operating Humidity20 % to 80 %
Storage Humidity20 % to 95 %
Dimensions *172 mm x 63 mm x 145 mm (without lens)
2 7/8 inches x 2 1/2 inches x 5 3/4 inches (without lens)
72 mm x 63 mm x 199 mm (with lens)
3 7/8 x 2 1/2 x 7 7/8 inches (with lens)
MassApprox. 485 g (with lens)
Approx. 1 lb 1.1 oz (with lens)
External MaterialTop cover: SECC-CF
Bottom cover: SECC-CF
Front panel: PC+ABS
Rear panel: PC + ABS
External ColorTop cover: Munsell 3.6GY 8.4/0.3
Bottom cover: Munsell 3.6GY 8.4/0.3
Front panel: Munsell 3.9PB 0.3/1.0
Rear panel: Munsell 4.4BG 8.4/0.2
Fire RetardantUL2044
Safety RegulationsJATE Technical standard (LAN)
UL2044, IEC60950-1 (CB)
VCCI (Class A), FCC (Class A), IC (Class A)
Emission: EN55022 (Class A) + EN50130-4
Immunity: EN55022 (Class A) + EN55024
Emission: AS/NZS CISPR22 (Class A)
KCC
EMC-TR
Supplied AccessoriesCD-ROM (supplied programs) (1)
Installation Manual (1)
Wire rope (1)
Screw (M4 × 8) (1)
Safety regulations (1)
Notes
*1The values for dimensions are approximate.
Accessories
UNI-MDPEM600
Pendant Mount Adaptor
UNI-ORF8C2/T
AC24V BOX camera vandal resistant outdoor housing
UNI-ORF8C1/T
Vandal resistant outdoor housing for box cameras
