Brand:AXIS
Model:ExCam XF M3016
Lens Focal length 2.8 mm
Optical zoom -
Horizontal field of view 92 °
Vertical field of view 52 °

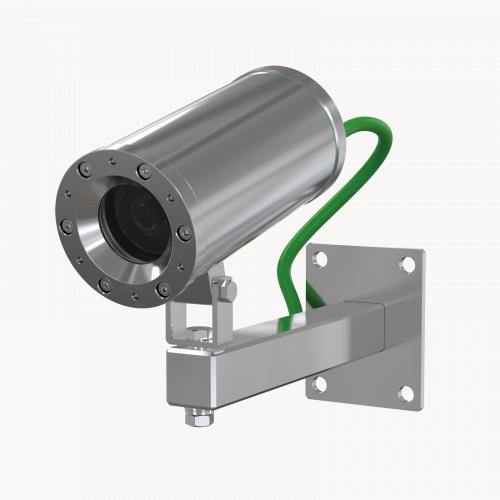

ExCam XF M3016 Explosion-Protected Network Camera
Safety without compromise
3 MP at 30 fps, wide field-of-view, WDR
Lightweight and compact
Powered by PoE with non-armored cable
ATEX, IECEx, EAC Ex and IA
Zones 1, 2, 21, 22; Groups IIC, IIIC
ExCam XF M3016 is a lightweight and robust explosion-protected fixed box camera that offers great video quality and easy, one-man installation. Ideal for indoor processing plants, this compact, stainless steel camera can easily fit wherever you need it. It’s certified (ATEX/IECEx/EAC Ex/IA) for use in potentially combustible zones.
Compact and robust, ExCam XF M3016 offers easy, cost-efficient installation. It weighs just 3 kgs so it’s easy to install with only one person. And unlike some larger explosion-protected cameras, the compact design means it easily fits wherever you need it. ExCam XF M3016 is powered by Power over Ethernet (PoE) with just one ethernet cable for power and network access. In addition, it includes AXIS Camera Application Platform and because it’s based on open standards, it supports a wide range of 3rd party analytics so it’s possible to add analytics and other applications to meet specific security and business requirements.
This affordable fixed box camera comes enclosed in a stainless steel explosion protected housing. It’s certified (ATEX/IECEx/EAC Ex/IA) for use in potentially combustible zones. It offers Axis Zipstream with support for H.264 and H.265 which significantly lowers bandwidth and storage requirements without compromising image quality. It also includes a pre-connected 5 m (16 ft) non-armored cable and a pre-installed memory card for local storage of video.
ExCam XF M3016 offers great 3 MP image quality at up to 30 fps. It features a wide field-of-view up to 92 degrees in HDTV 1080p - ideal for overview surveillance. Furthermore, with Wide Dynamic Range (WDR) it ensures clarity even when there’s both dark and light areas in the scene.
Technical specifications
Models: ExCam XF M3016
Camera
Image sensor CMOS
Image sensor size 1/3
Lightfinder -
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.4 lux
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 2304x1296
Max frames per second 25/30
Electronic image stabilization –
Lens
Focal length 2.8 mm
Optical zoom -
Horizontal field of view 92 °
Vertical field of view 52 °
Compression
Zipstream Yes
H.264 High, Main
H.265 Yes
Motion JPEG Yes
Network
PoE Class 1
Security
Signed firmware Yes
Secure boot –
TPM –
General
Remote focus –
Remote zoom –
Local storage (memory card slot) Yes
Outdoor Ready Yes
IP rating IP68
Power
Power (max) –
Power (average) –
DC input voltage –
AC input voltage –
Cables & connectors
ASKDP03-T Armored Cable ExCam
Power and data, armored cables for hazardous areas
SKDP03-T Cable ExCam
Power and data, non-armored cables for hazardous areas
Mounts
EXTB-3 Junction Box ExCam
Pole Mount ExCam XF
For explosion-protected fixed network cameras
Wall Mount ExCam XF M30
For explosion-protected fixed network cameras
Power adapters
Ex Connection Rail 4-port PoE
High-performance 4-port PoE switch for hazardous areas
Ex Connection Rail 8-port PoE
High-performance 8-port PoE switch for hazardous areas
Weathershields
Weathershield ExCam XF M30
ExCam XF M3016 ATEX, EAC, IA, IECEx, PESO 01989-001
