Brand:AXIS
Model:ExCam XPT Q6075
Lens Focal length:4.25 - 170 mm
Optical zoom 40
Horizontal field of view 65.1 - 2.00 °
Vertical field of view 39.1-1.18 °

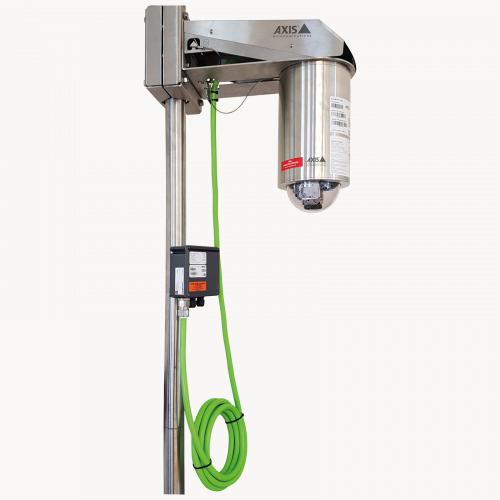

ExCam XPT Q6075 Explosion-Protected PTZ Camera
Real-time movement and control in hazardous areas
HDTV 1080p at 50/60 fps, with 40x optical zoom
Axis Lightfinder 2.0
Autotracking 2 and orientation aid
TPM, FIPS 140-2 level 2 certified
ATEX, IECEx, EAC and IA; Zone 1, 21
ExCam XPT Q6075 is a robust, high-performance PTZ camera that offers superior light-sensitivity for clear, sharp overview and excellent detail in near darkness. Enclosed in a stainless-steel housing, it's certified (ATEX, IECEx, EAC and IA) for use in potentially combustible environments. Featuring the new generation chip, it offers improved imaging, enhanced security features, extended capabilities for analytics and significantly more efficient video compression.
ExCam XPT Q6075 offers 40x optical zoom, superior video and excellent detail in HDTV 1080p resolution. Based on the new Axis chipset, it offers improved performance and features Axis Lightfinder 2.0 to capture images with more realistic and saturated colors and sharper images of moving objects. With focus recall there's no need to manually focus or wait the second or two it takes for autofocus to adjust. You get instantaneous focus even in challenging light conditions. Additionally, it includes autotracking 2 with click and track functionality for active object tracking, and orientation aid with support for dynamic overlays for quick orientation. Furthermore, Axis Zipstream with support for H.264/H.265 significantly lowers bandwidth and storage requirements.
This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. It also features a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) to ensure secure storage of all cryptographic keys and certificates.
ExCam XPT Q6075 includes several Axis analytic applications that help keep personnel and equipment safe. Enter/exit detector can trigger an alarm if someone enters a restricted area, while guard tour can be used to monitor surrounding areas in case of remote installations, such as well heads. Plus, it's easy to add 3rd party analytics.
Significantly lighter than a traditional positioning camera, this PTZ dome camera weighs just 20 kg and comes enclosed in a robust, stainless steel explosion-protected housing. It's certified (ATEX, IECEx, EAC and IA) for use in potentially combustible environments. And, with IP66/IP68 ratings, you can rest assured that the camera housing is resistant to harsh weather conditions, dust and water. It's powered by Power over Ethernet (PoE) with just one ethernet cable for power and network access for quick and easy installation. Thus, the power source can be placed far from the camera to facilitate service and maintenance.
Technical specifications
Models: ExCam XPT Q6075
Camera
Image sensor CMOS
Image sensor size 1/2.8
Lightfinder Lightfinder 2.0
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0.002 lux
Video
Max video resolution 1920x1080
Max frames per second 50/60
Electronic image stabilization –
Lens
Focal length 4.25 - 170 mm
Optical zoom 40
Horizontal field of view 65.1 - 2.00 °
Vertical field of view 39.1-1.18 °
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Network
PoE Class 4
Security
Signed firmware Yes
Secure boot Yes
TPM Yes
General
Remote focus –
Remote zoom –
Local storage (memory card slot)Yes
Outdoor Ready –
IP rating IP66, IP68
Power
Power (max) 60.0 W
Power (average) –
DC input voltage 22-26 V
AC input voltage –
Cables & connectors
ASKDP03-T Armored Cable ExCam
Power and data, armored cables for hazardous areas
SKDP03-T Cable ExCam
Power and data, non-armored cables for hazardous areas
Mounts
Pole Mount ExCam XPT
For explosion-protected ExCam XPT Q6055
Wall Mount ExCam XPT
For explosion-protected ExCam XPT Q6055
Power adapters
Ex Connection Rail 4-port PoE
High-performance 4-port PoE switch for hazardous areas
Ex Connection Rail 8-port PoE
High-performance 8-port PoE switch for hazardous areas
ExCam XPT Q6075 ATEX, EAC, IA, IECEx 01928-001
